React component

Overview

The Radar Score component displays a clickable icon that opens a modal window containing a radar chart visualization. This component is useful for presenting multi-dimensional score data in an interactive format.

Visual Examples

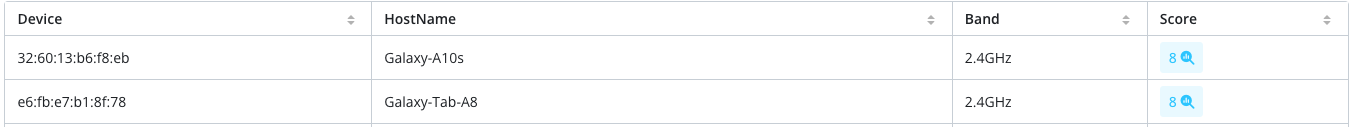

Icon Display:

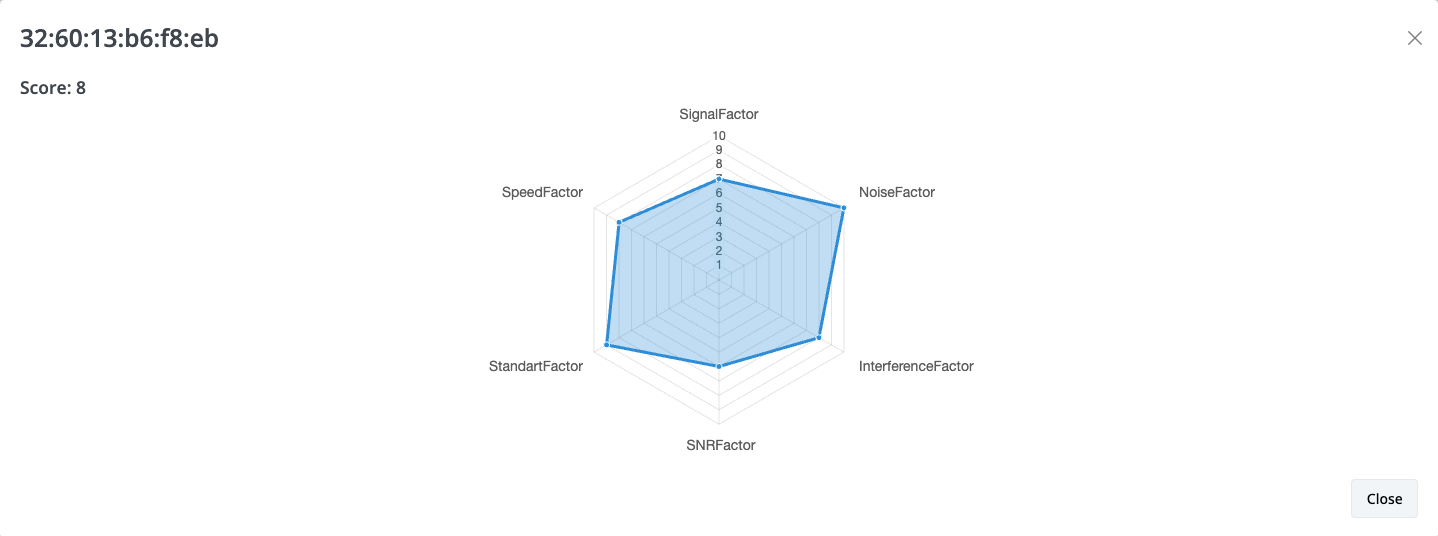

Modal with Radar Chart:

When the icon is clicked, a modal opens displaying the radar chart with the configured data.

Component Syntax

<radar-score paramid="string" score="int" labels="string" data="string"></radar-score>

Parameters

• paramid (String): Unique identifier for the radar-score element
• score (Integer): Total score value displayed on the icon and in the modal
• labels (String): Comma-separated list of labels for the chart axes
• data (String): Comma-separated list of numerical values corresponding to each label

Usage Example

<radar-score
  score="8"
  paramid="32:60:13:b6:f8:eb"
  labels="SignalFactor, NoiseFactor, InterferenceFactor, SNRFactor, StandartFactor, SpeedFactor"
  data="7,10,8,6,9,8">
</radar-score>

In this example:

• The icon displays a score of 8
• Six data points are plotted on the radar chart
• Each value in the data parameter corresponds to a label in the labels parameter
