Processing scripts for Parameters

Overview

Processing scripts enable advanced logic integration within communication flows between managed devices and the CONTROL platform. These Python-based scripts implement business logic to transform parameter values before they are processed and stored by the platform.

Processing scripts execute primarily when the CONTROL platform receives a value from the configured parameter. However, they may also run during other operations and actions as detailed below.

Available Variables

When a processing script executes, the CONTROL platform automatically populates several variables with contextual information:

Variable	Description
value	The value of the parameter being received or processed
parameter_name	The name of the parameter being received or processed
parameter_id	The unique ID of the parameter being received or processed
variable_name	The variable name of the parameter being received or processed
operation	The name of the current operation: add_object, del_object, or get_value
index	The instance number or index of the object being added

The platform expects the transformed value to be assigned to a variable named result.

Basic Example

This example applies a mathematical formula to transform the received value:

result = (value - 10) / 10000

This script subtracts 10 from the received parameter value, then divides the result by 10,000. The CONTROL platform will use the value stored in result instead of the original received value.

Execution Context

Processing scripts execute in multiple scenarios:

• When the CONTROL platform receives a parameter value from a managed device
• After creating or deleting objects on managed devices
• During operations that modify other parameters and settings

In these contexts, scripts can modify additional parameters, adjust device settings, and trigger management operations as described in the Special Objects for Scripts section.

Python Operators

Processing scripts support standard Python arithmetic operators:

Operator	Name	Description	Example
+	Addition	Adds values on either side of the operator	a + b = 30
-	Subtraction	Subtracts right-hand operand from left-hand operand	a - b = -10
*	Multiplication	Multiplies values on either side of the operator	a * b = 200
/	Division	Divides left-hand operand by right-hand operand	b / a = 2
%	Modulus	Divides left-hand operand by right-hand operand and returns remainder	b % a = 0
**	Exponent	Performs exponential (power) calculation	a**2 = 100
//	Floor Division	Division where the result is the quotient with digits after the decimal point removed. If one operand is negative, the result is floored (rounded toward negative infinity)	9//2 = 4, 9.0//2.0 = 4.0, -11//3 = -4, -11.0//3 = -4.0

Example variable assignments:

a = 10
b = 20

Configuration

Processing scripts are configured within the Parameter configuration screen. Access this screen by following these simple steps.

Script Configuration Location

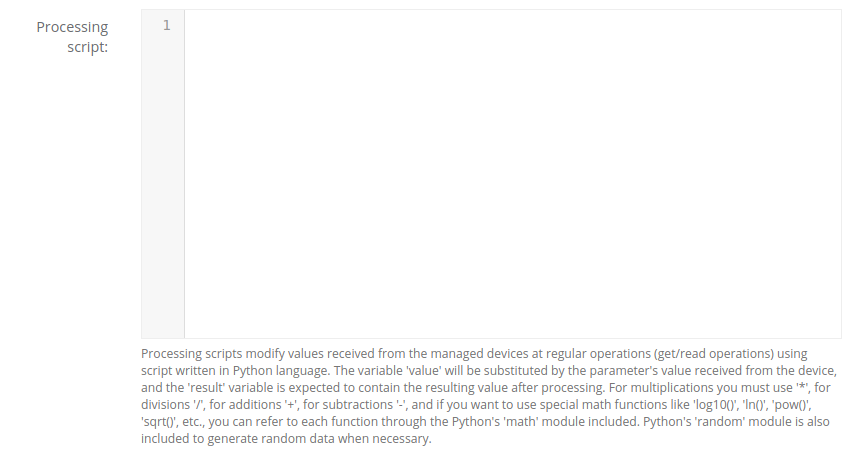

On the Parameter configuration screen, locate the script configuration section under Advanced settings:

Included Python Modules

The script processing environment includes the following Python modules by default:

math Module

Provides mathematical functions for advanced calculations.

Examples:

result = math.log10(value)  # Calculate base-10 logarithm of 'value'

result = math.sqrt(value)   # Calculate the square root of 'value'

result = math.acos(value)   # Calculate the arc cosine of 'value' in radians

result = value * math.pi    # Multiply 'value' by the mathematical pi constant

Reference: https://docs.python.org/3/library/math.html

random Module

Generates pseudo-random numbers.

Example:

result = value + random.randint(1, 10)  # Add a random number between 1 and 10 to 'value'

Reference: https://docs.python.org/3/library/random.html

json Module

Provides JSON encoding and decoding capabilities.

Example:

result = json.loads(value)['bytes']  # Parse JSON string and extract the 'bytes' element

Reference: https://docs.python.org/3/library/json.html

Advanced Capabilities

Special Objects and Operations

The script execution context includes special objects that allow you to:

• Modify attributes of managed devices
• Update device settings
• Perform related management actions and operations

For detailed information about special objects and usage examples, see the Special Objects for Scripts section.

Special Functions

Function	Description	Parameters
detect_network_entity_info	Retrieves network entity information for a device and optionally extends the current parameter value	context: dict, extend: bool = False, device_headers: dict or None = None, current_val: str = None, old_val: str = None

Visual Workflow Designer

In certain environments, a visual workflow designer is available to build scripts using a graphical interface.

Disabling Visual Designer Transformation

To prevent the visual workflow designer from transforming a script, add this comment as the first line:

# _NO_VWD_
