Metric logs

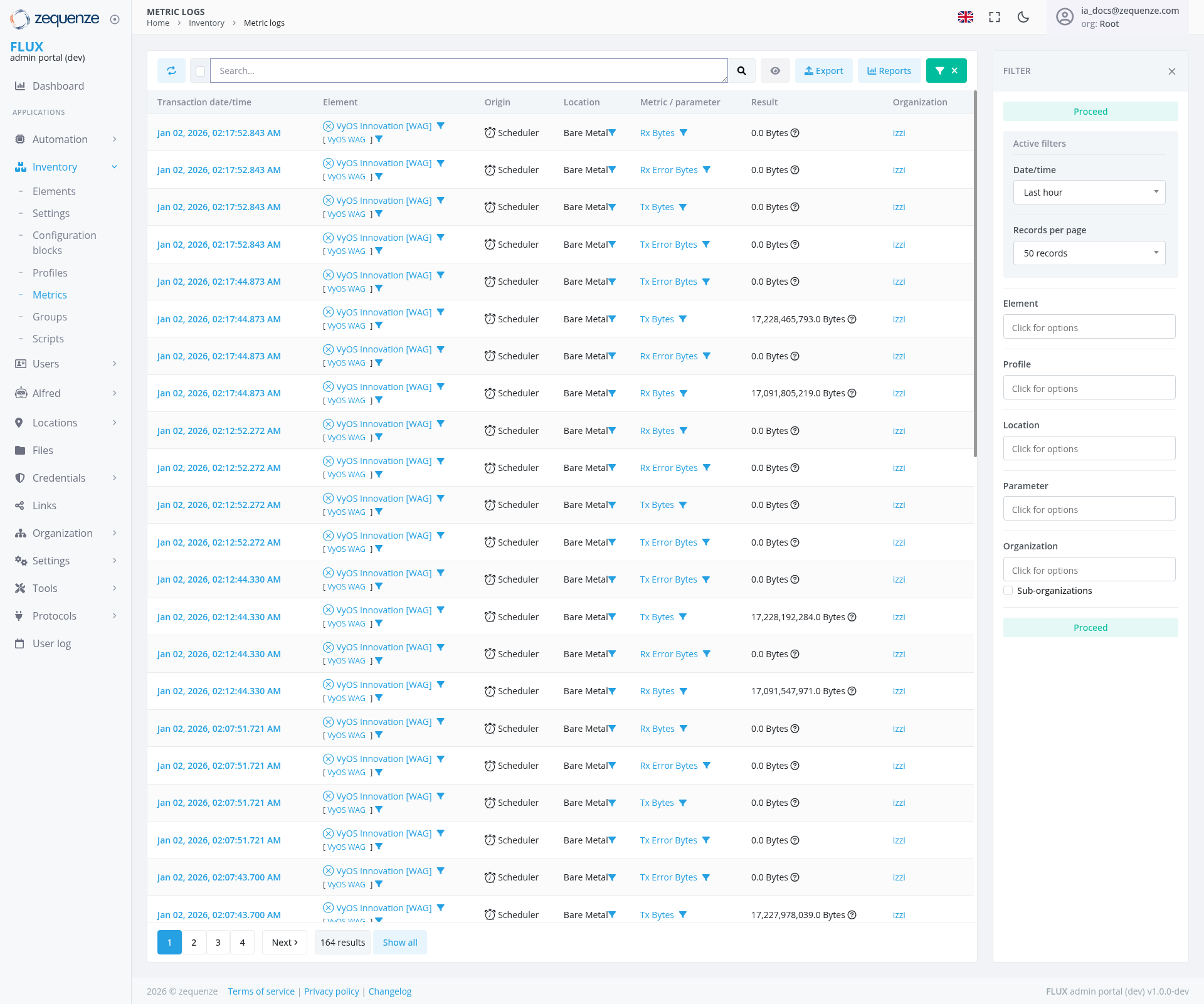

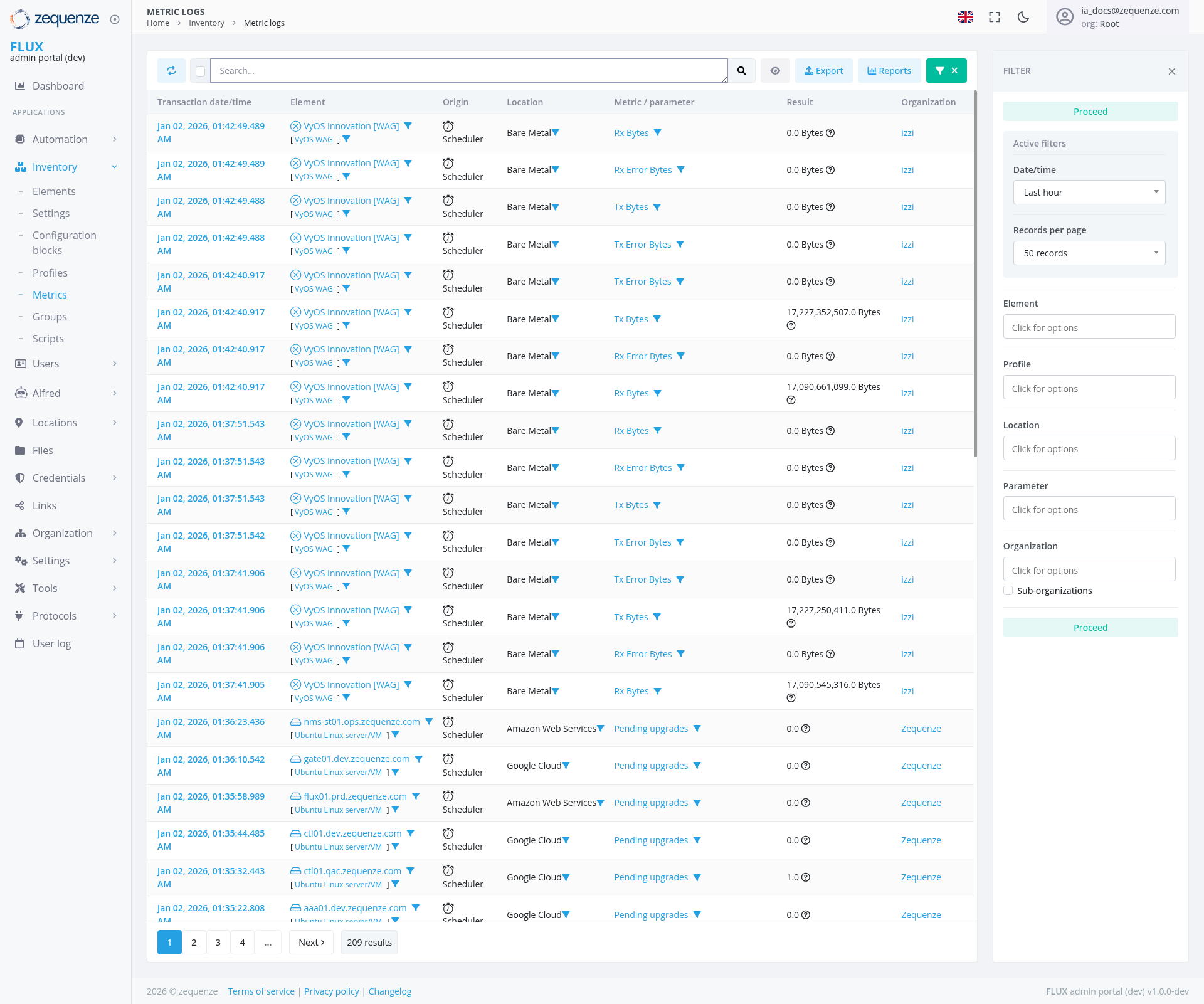

Screenshot - Metric logsScreenshot - Metric logs

Overview

The Metric Logs page in the Zequenze Control Portal provides a comprehensive view of all metric data collected from various devices and sensors in your fleet. This centralized logging system displays real-time and historical metric information, allowing administrators to monitor system performance, track data collection activities, and troubleshoot connectivity issues across their IoT infrastructure.

Key Features

  • Real-time Metric Monitoring: View live data streams from connected devices and sensors
  • Historical Data Access: Browse through timestamped metric logs with detailed filtering options
  • Multi-parameter Tracking: Monitor various data types including VyOS Innovation metrics, Bytes data, and Error Bytes
  • Advanced Filtering: Filter logs by date/time, element, location, profile, and other parameters
  • Data Export Capabilities: Export metric data for external analysis and reporting
  • Pagination Support: Navigate through large datasets efficiently with pagination controls

UI Elements

Main Data Table

The central table displays metric logs with the following columns:

  • Transaction date/time: Timestamp of when the metric was recorded (Jan 02, 2026 format)
  • Element: Device or sensor identifier (VyOS Innovation [WAG] entries visible)
  • Origin: Source of the data collection (Scheduler)
  • Location: Physical or logical location of the device (Bare Metal, Amazon Web Services, Google Cloud)Metal)
  • Metric/Parameter: Type of data being measured (Rx Bytes, Tx Bytes, TxRx Error Bytes, PendingTx upgrades)Error Bytes)
  • Result: Actual metric values in bytes (ranging from 0.0 Bytes to over 17 TB)
  • Organization: Associated organization (izi, Zequenze)izi)

Filter Panel (Right Sidebar)

  • Active Filters: Shows currently applied filters with "Proceed" status
  • Date/Time Filter: "Last hour" dropdown selection
  • Records Per Page: Set to "50 records" with dropdown options
  • Element Filter: "Click for options" dropdown
  • Profile Filter: "Click for options" dropdown
  • Location Filter: "Click for options" dropdown
  • Parameter Filter: "Click for options" dropdown
  • Organization Filter: "Click for options" dropdown
  • Sub-organizations: Additional organizational filtering with "Proceed" status indicator

Top Navigation Bar

  • Search Field: Global search functionality across metric logs
  • Export Button: Export filtered data to external formats
  • Reports Button: Generate custom reports from metric data
  • Filter Toggle: Show/hide the filter panel (located in top-right corner)

User Interactions

Viewing Metrics

  • Users can scroll through the paginated list of metric entries
  • Click on column headers to sort data by specific criteria
  • Use the pagination controls at the bottom (1, 2, 3, 4, ... Next) to navigate through results showing 209164 total results

Filtering Data

  • Access the filter panel on the right side of the screen
  • Select specific time ranges using the Date/Time dropdown
  • Choose specific elements, profiles, locations, or parameters from their respective dropdowns
  • Apply multiple filters simultaneously for refined results
  • Clear filters as needed to expand the data view

Data Export

  • Click the "Export" button to download filtered metric data
  • Select from available export formats for external analysis

Navigation

Accessing the Page

  • Navigate from the main Dashboard via the left sidebar menu
  • Select Inventory → Metrics from the navigation tree
  • The page is accessible at the URL path: /admin/inventory/metriclog/
  • Dashboard: Return to main overview
  • Inventory: Access other inventory management features
  • Elements: Manage individual device configurations
  • Settings: Configure metric collection parameters

Data Displayed

Metric Types

  • Rx Bytes: Received data volume measurements
  • Tx Bytes: Transmitted data volume measurements
  • Rx Error Bytes: Error data reception measurements
Tx Error Bytes: Error data transmission measurements Pending upgrades: System upgrade status metrics VyOS Innovation [WAG]: Specific router/gateway metrics

Data Volumes

The system tracks data ranging from:

  • 0.0 Bytes: Minimal or no data transfer
  • Multi-terabyte volumes: High-capacity data transfers (17+ TB shown in examples)
  • 1.0: Status indicators for pending operations

Temporal Data

  • All entries are timestamped with precise date and time information
  • Data spans multiple time periods for historical analysis
  • Recent entries from January 2, 2026 are prominently displayed with times ranging from early morning hours (01:3502:07 AM)AM to early afternoon (01:4202:17 AM)

Actions Available

Primary Actions

  • Filter Metrics: Apply various filters to narrow down displayed data
  • Export Data: Download metric information for external use
  • Generate Reports: Create formatted reports from selected metrics
  • Search Records: Use the search function to find specific entries
  • Paginate Results: Navigate through large datasets using page controls

Administrative Actions

  • Monitor Real-time Data: View live metric updates as they occur
  • Analyze Trends: Compare historical data across different time periods
  • Troubleshoot Issues: Identify anomalies or errors in data transmission

Notes/Tips

Performance Optimization

  • Use specific filters to reduce large dataset load times
  • Consider exporting data for complex analysis rather than processing in-browser
  • The default "Last hour" filter helps focus on recent activity

Data Interpretation

  • 0.0 Bytes Results: May indicate device connectivity issues or scheduled downtime
  • Large Data Volumes: High byte counts may suggest heavy usage or potential data anomalies
  • Error Bytes: Non-zero error bytes warrant investigation for network or device issues
  • Pending upgrades: Values of 1.0 indicate systems queued for updates

Best Practices

  • Regularly monitor error metrics to maintain system health
  • Use the organization filter when managing multi-tenant environments
  • Export historical data periodically for long-term trend analysis and compliance reporting
  • Monitor pendingboth upgradetransmission (Tx) and reception (Rx) error metrics to trackidentify systemdirectional maintenancecommunication activitiesissues
