Metric logs

Generating

documentation.

Overview

The Metric Logs page in the Zequenze Control Portal provides a comprehensive view of all metric data collected from various devices and sensors in your fleet. This centralized logging system displays real-time and historical metric information, allowing administrators to monitor system performance, track data collection activities, and troubleshoot connectivity issues across their IoT infrastructure.

Key Features

Real-time Metric Monitoring: View live data streams from connected devices and sensors Historical Data Access: Browse through timestamped metric logs with detailed filtering options Multi-parameter Tracking: Monitor various data types including VyOS Innovation metrics, Bytes data, and Error Bytes Advanced Filtering: Filter logs by date/time, element, location, profile, and other parameters Data Export Capabilities: Export metric data for external analysis and reporting Pagination Support: Navigate through large datasets efficiently with pagination controls

UI Elements

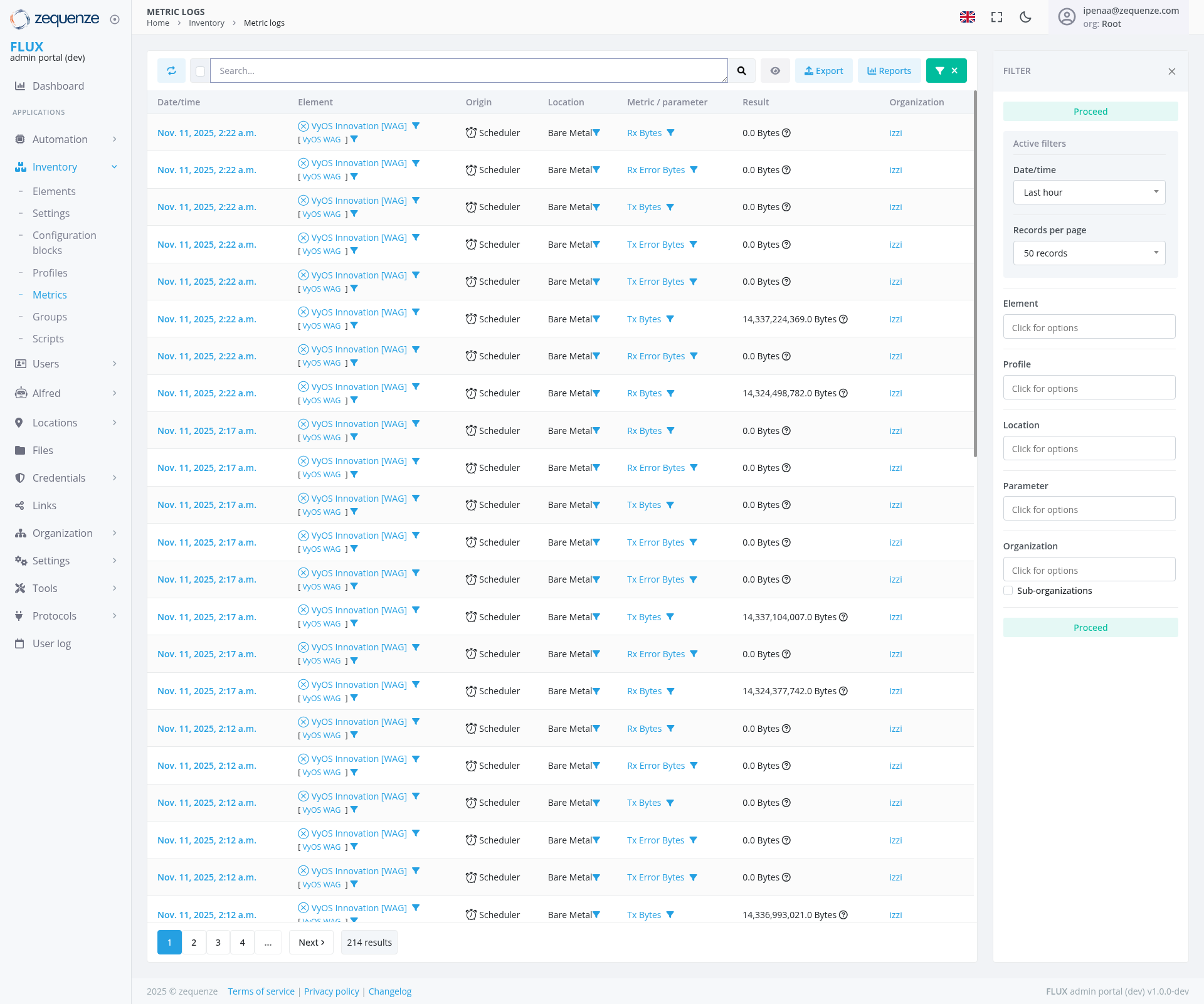

Main Data Table

The central table displays metric logs with the following columns:

DateTime: Timestamp of when the metric was recorded (Nov. 11, 2025 format) Element: Device or sensor identifier (VyOS Innovation [WAG] entries visible) Origin: Source of the data collection (Scheduler) Location: Physical or logical location of the device (Bare Metal) Metric/Parameter: Type of data being measured (Rx Bytes, Tx Bytes, Tx Error Bytes) Result: Actual metric values in bytes (ranging from 0.0 Bytes to over 14 TB) Organization: Associated organization (izi)

Filter Panel (Right Sidebar)

Active Filters: Shows currently applied filters with "Proceed" status Date/Time Filter: "Last hour" dropdown selection Records Per Page: Set to "50 records" with dropdown options Element Filter: "Click for options" dropdown Profile Filter: "Click for options" dropdown Location Filter: "Click for options" dropdown Parameter Filter: "Click for options" dropdown Organization Filter: "Click for options" dropdown Sub-organizations: Additional organizational filtering

Top Navigation Bar

Search Field: Global search functionality across metric logs Export Button: Export filtered data to external formats Reports Button: Generate custom reports from metric data Filter Toggle: Show/hide the filter panel

User Interactions

Viewing Metrics

Users can scroll through the paginated list of metric entries Click on column headers to sort data by specific criteria Use the pagination controls at the bottom (1, 2, 3, 4, ... Next) to navigate through results

Filtering Data

Access the filter panel on the right side of the screen Select specific time ranges using the Date/Time dropdown Choose specific elements, profiles, locations, or parameters from their respective dropdowns Apply multiple filters simultaneously for refined results Clear filters as needed to expand the data view

Data Export

Click the "Export" button to download filtered metric data Select from available export formats for external analysis

Navigation

Accessing the Page

Navigate from the main Dashboard via the left sidebar menu Select Inventory → Metrics from the navigation tree The page is accessible at the URL path: /admin/inventory/metriclog/

Related Pages

Dashboard: Return to main overview Inventory: Access other inventory management features Elements: Manage individual device configurations Settings: Configure metric collection parameters

Data Displayed

Metric Types

Rx Bytes: Received data volume measurements Tx Bytes: Transmitted data volume measurements Tx Error Bytes: Error data transmission measurements VyOS Innovation [WAG]: Specific router/gateway metrics

Data Volumes

The system tracks data ranging from:

0.0 Bytes: Minimal or no data transfer Multi-terabyte volumes: High-capacity data transfers (14+ TB shown in examples)

Temporal Data

All entries are timestamped with precise date and time information Data spans multiple time periods for historical analysis Recent entries from November 11, 2025 are prominently displayed

Actions Available

Primary Actions

Filter Metrics: Apply various filters to narrow down displayed data Export Data: Download metric information for external use Generate Reports: Create formatted reports from selected metrics Search Records: Use the search function to find specific entries Paginate Results: Navigate through large datasets using page controls

Administrative Actions

Monitor Real-time Data: View live metric updates as they occur Analyze Trends: Compare historical data across different time periods Troubleshoot Issues: Identify anomalies or errors in data transmission

Notes/Tips

Performance Optimization

Use specific filters to reduce large dataset load times Consider exporting data for complex analysis rather than processing in-browser The default "Last hour" filter helps focus on recent activity

Data Interpretation

0.0 Bytes Results: May indicate device connectivity issues or scheduled downtime Large Data Volumes: High byte counts may suggest heavy usage or potential data anomalies Error Bytes: Non-zero error bytes warrant investigation for network or device issues

Best Practices

Regularly monitor error metrics to maintain system health Use the organization filter when managing multi-tenant environments Export historical data periodically for long-term trend analysis and compliance reporting
