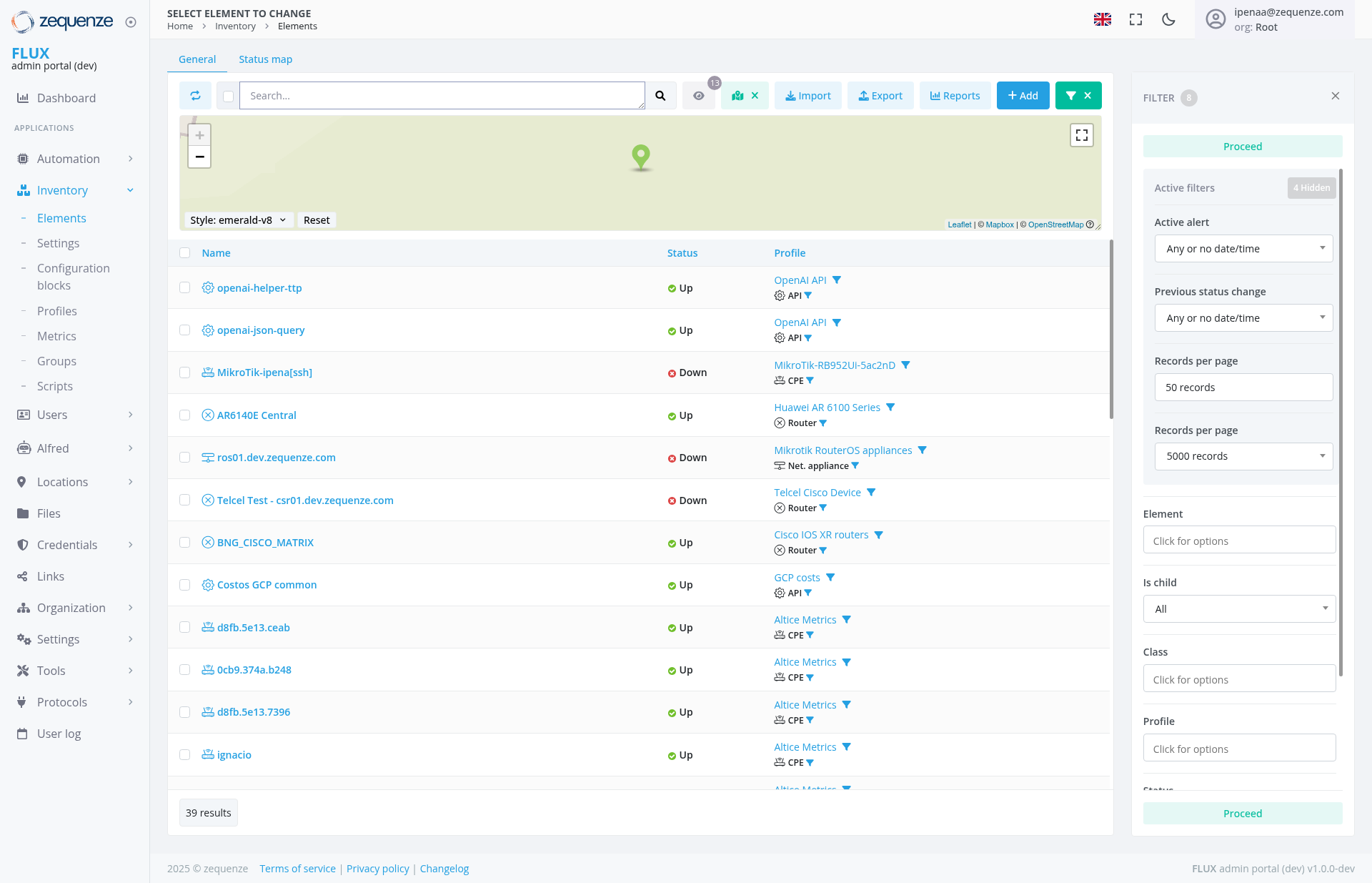

Screenshot - Elements

Overview

The Inventory Elements page in the Zequenze Control Portal provides a comprehensive view of all network elements and devices managed within the system. This centralized dashboard allows administrators to monitor device status, manage configurations, and perform various operations on network infrastructure components.

Key Features

  • Real-time Status Monitoring: View current operational status of all network elements
  • Interactive Map View: Visual representation of device locations with status indicators
  • Advanced Filtering: Multiple filter options to quickly locate specific elements
  • Bulk Operations: Import, export, and manage multiple elements simultaneously
  • Status Tracking: Monitor changes in device states over time
  • Profile Management: View and manage device profiles and configurations

UI Elements

Navigation Bar

  • Home → Inventory → Elements breadcrumb navigation
  • Language selector (English flag icon)
  • User profile indicator showing logged-in user (ipenaa@zequenze.com)
  • Organization context (org: Root)

Tab Navigation

  • General: Current active tab showing element listing
  • Status map: Alternative view showing geographical distribution

Search and Filter Controls

  • Search Bar: Text-based search functionality for finding specific elements
  • Import Button: Upload element configurations from external files
  • Export Button: Download element data and configurations
  • Reports Button: Generate reports on element status and performance
  • Add Button: Create new network elements
  • Filter Panel: Advanced filtering options on the right side

Map View

  • Interactive map with green location markers
  • Style selector (currently set to "emerald-v8")
  • Zoom controls (+ and - buttons)
  • Fullscreen toggle option

Data Displayed

The main table shows detailed information about network elements:

Column Structure

  • Name: Element identifier with clickable links
  • Status: Current operational state (Up/Down with colored indicators)
  • Profile: Associated device profile and type information

Element Types and Status

The table displays various network elements including:

  • API Elements: OpenAI helper and query components (Status: Up)
  • Network Hardware: MikroTik devices, routers, switches (Mixed status)
  • Cisco Devices: Various Cisco networking equipment
  • GCP Resources: Google Cloud Platform components
  • Telecel Equipment: Carrier-grade networking devices

Status Indicators

  • 🟢 Green dot: Element is operational (Up)
  • 🔴 Red dot: Element is down or experiencing issues
  • Profile badges: Show device categories (API, CPE, Router, etc.)

User Interactions

Search and Discovery

  • Use the search bar to find elements by name or identifier
  • Apply filters using the right-side filter panel
  • Toggle between General and Status map views

Element Management

  • Click on element names to access detailed configuration
  • Use bulk operations for managing multiple elements
  • Import/export configurations for backup or migration

Status Monitoring

  • Monitor real-time status changes
  • View historical status information
  • Set up alerts for status changes

Navigation

Access Path

Home → Inventory → Elements

  • Settings: Configure element parameters
  • Configuration blocks: Manage configuration templates
  • Profiles: Define device profiles
  • Metrics: View performance data
  • Groups: Organize elements into logical groups

Actions Available

Individual Element Actions

  • View Details: Click element name for detailed information
  • Edit Configuration: Modify element settings
  • Status Management: Monitor and troubleshoot connectivity

Bulk Operations

  • Import Elements: Upload multiple element configurations
  • Export Data: Download element information and configurations
  • Generate Reports: Create status and performance reports
  • Add New Elements: Create single or multiple network elements

Filtering Options

  • Active Filters: Currently showing 4 hidden items
  • Records per page: Adjustable display (50 records default, up to 5000)
  • Status Filters: Filter by operational state
  • Profile Filters: Filter by device type or profile
  • Element Type: Filter by specific element categories

Filter Panel Options

The right-side filter panel provides advanced filtering capabilities:

  • Active Alert: Filter by alert status
  • Previous Status Change: Time-based filtering
  • Records per Page: Display density control
  • Element Type: Device category selection
  • Is Child: Hierarchical relationship filtering
  • Class: Element classification
  • Profile: Device profile filtering
  • Status: Operational state filtering

Notes/Tips

  • Performance: The page shows 39 total results, indicating efficient data loading
  • Real-time Updates: Status indicators provide live monitoring capabilities
  • Scalability: Supports up to 5000 records per page for large deployments
  • Visual Feedback: Color-coded status indicators for quick assessment
  • Responsive Design: Map view can be expanded to fullscreen for better visibility
  • Data Export: Use export functionality for reporting and backup purposes
  • Quick Actions: Proceed button available for batch operations on filtered results
