Install RouterOS in a virtual machine and connect it to CONTROL

Overview

This guide walks you through installing RouterOS in a VirtualBox virtual machine and connecting it to CONTROL using the TR-069 protocol.

Prerequisites

VirtualBox installed on your system
Internet connection to download RouterOS files
Basic familiarity with virtual machine management

Step 1: Download RouterOS

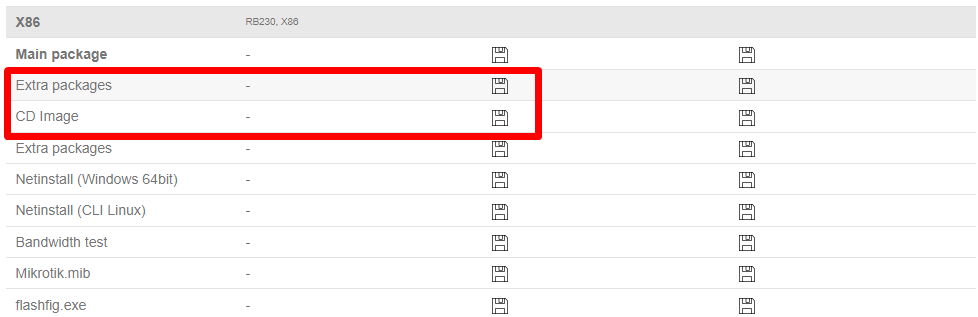

Visit the MikroTik download page and download the following files:

RouterOS 6.48.6 Long-term x86 ISO image
Extra packages (contains the TR-069 package)

Step 2: Create the Virtual Machine

Configure VM Settings

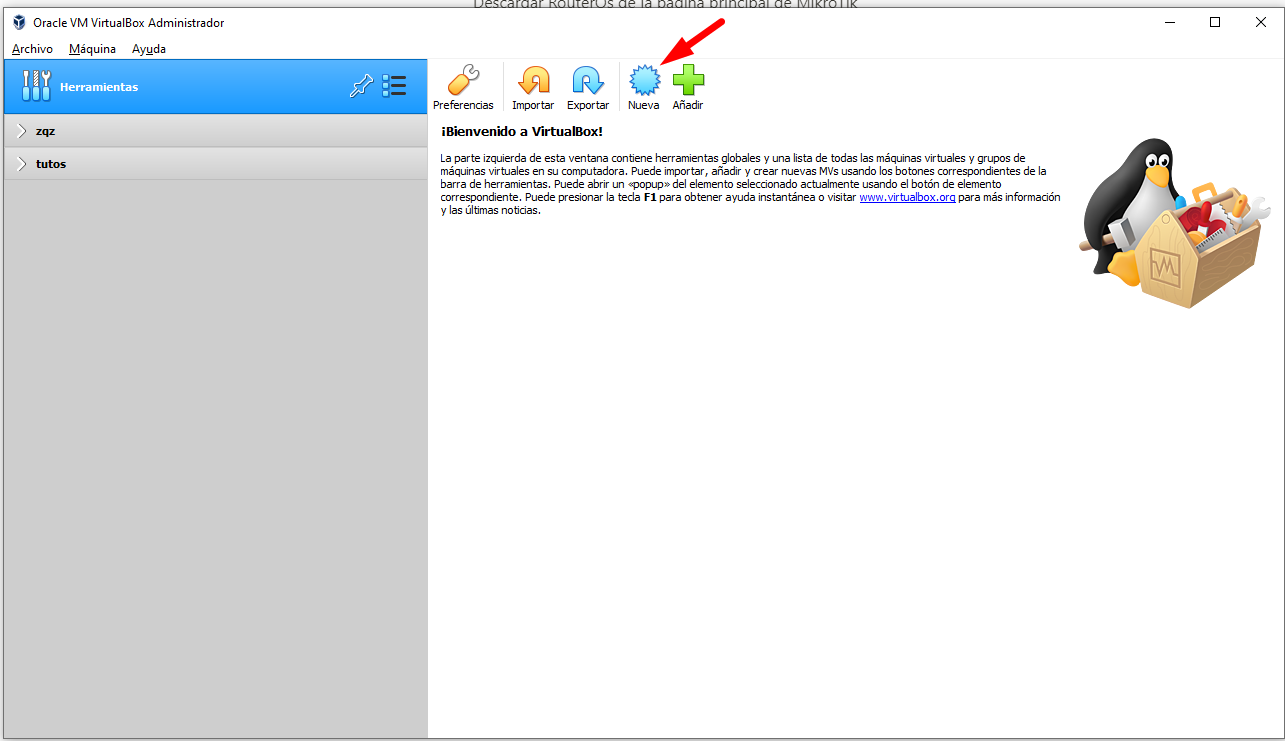

Open VirtualBox and create a new virtual machine

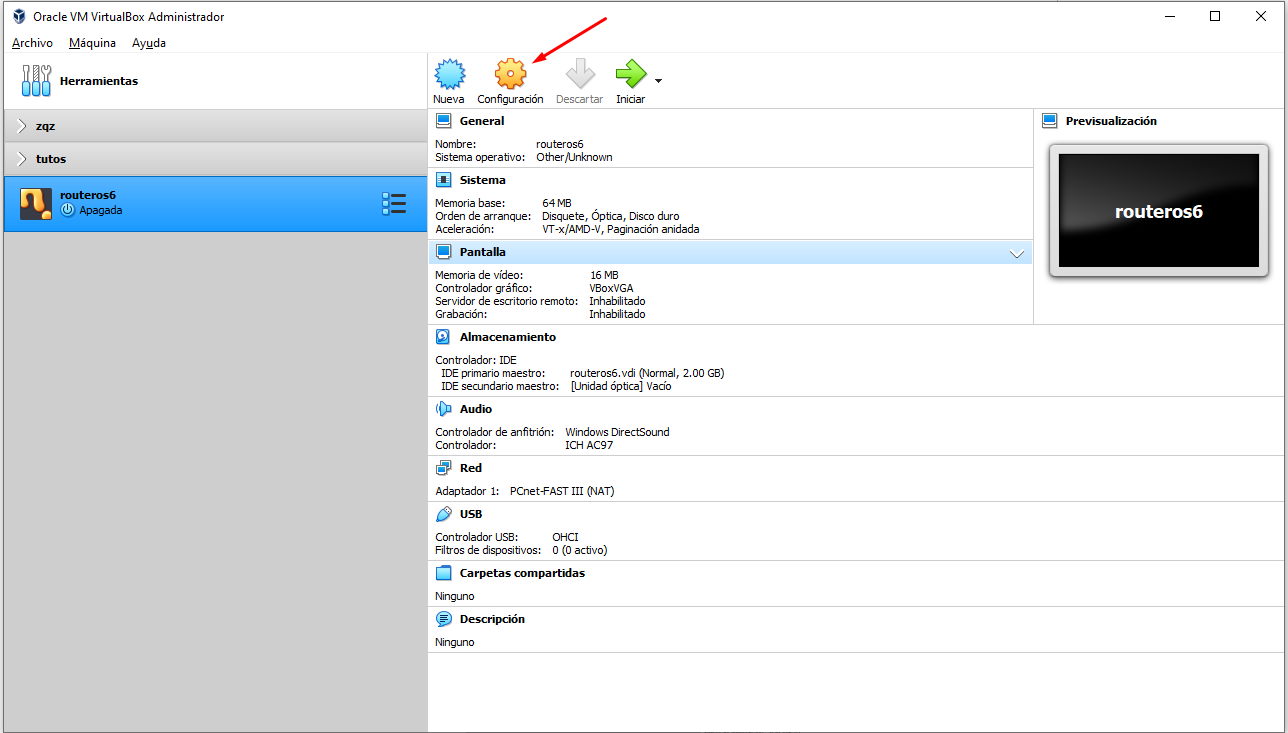

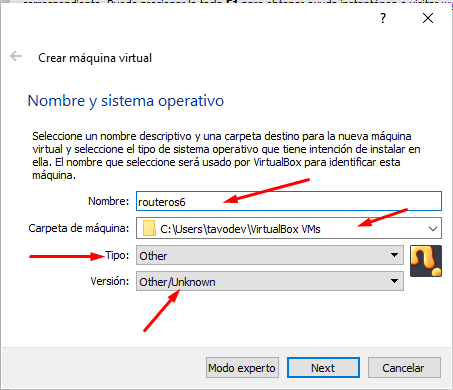

Enter the required information as shown below

Allocate RAM memory (64 MB is sufficient for RouterOS)

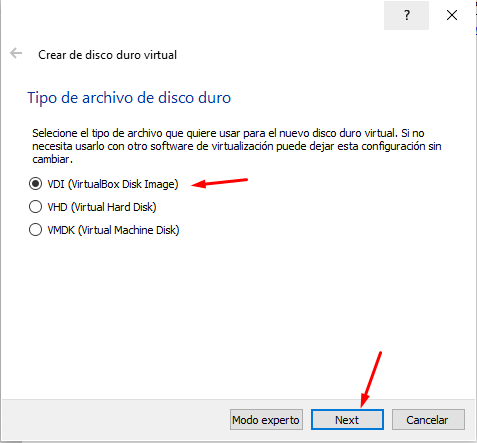

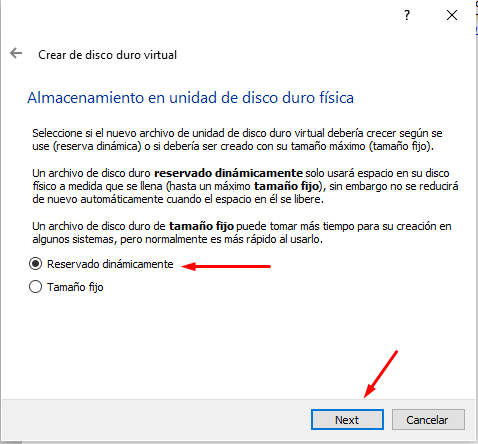

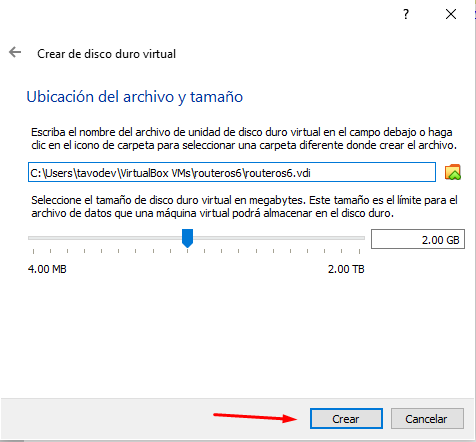

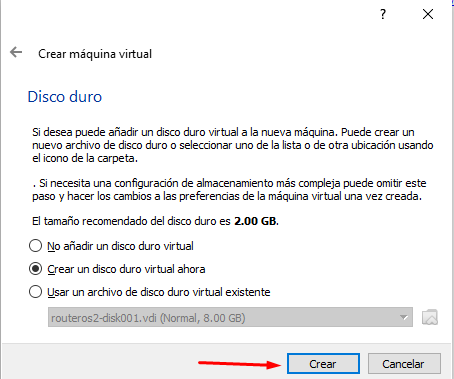

Create a virtual hard disk with the following settings:

Configure Network Adapters

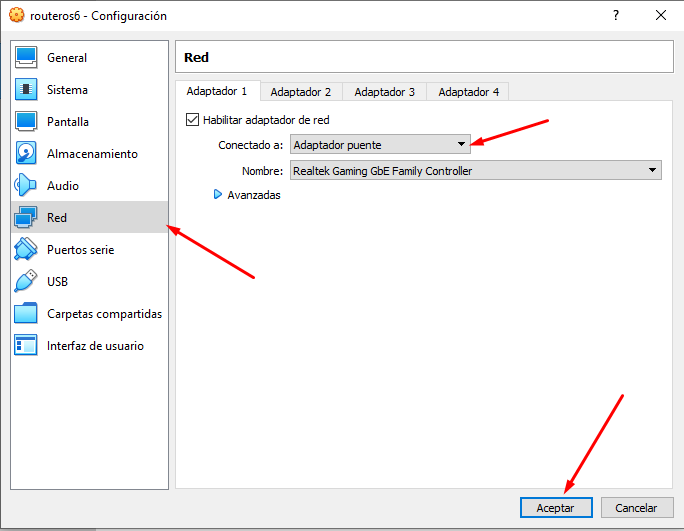

After the VM is created, add an additional network adapter in the VM settings

The network configuration should look like this:

Step 3: Install RouterOS

Boot and Installation

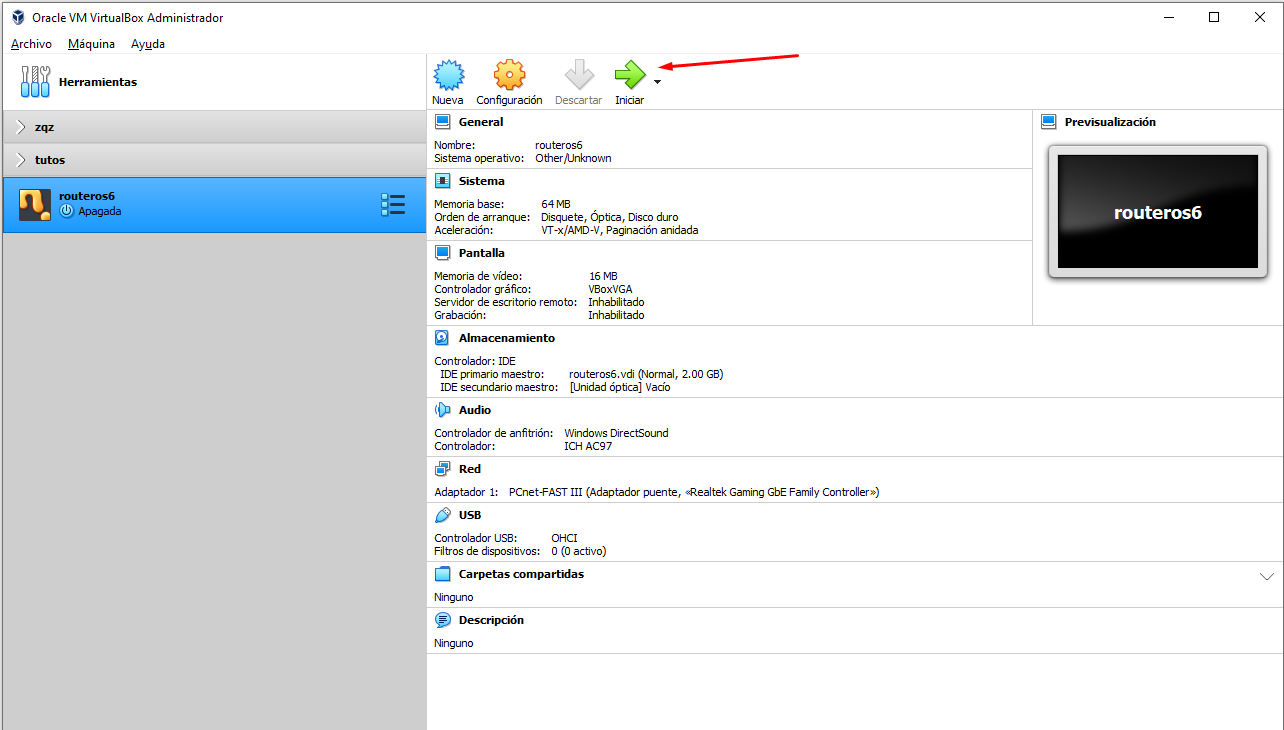

Start the virtual machine

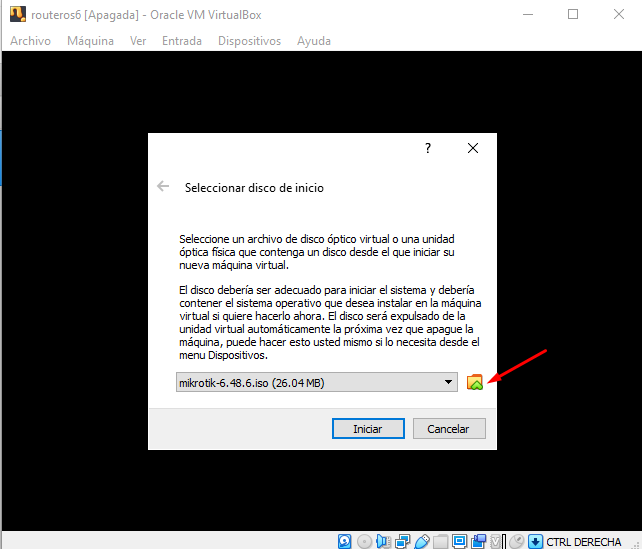

Select the RouterOS ISO image and boot the VM

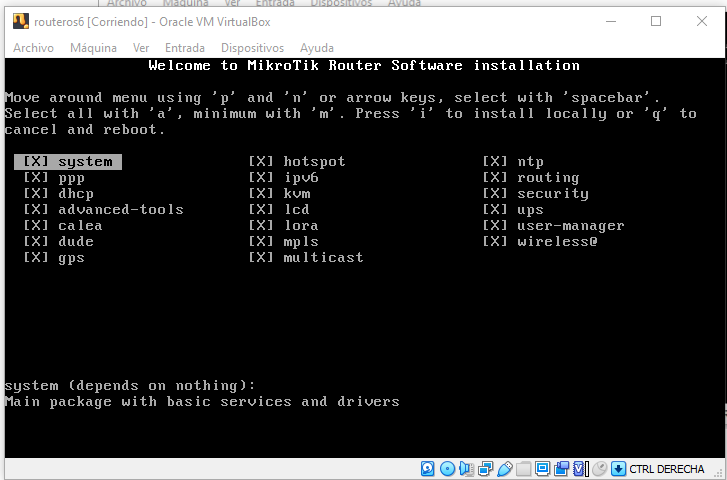

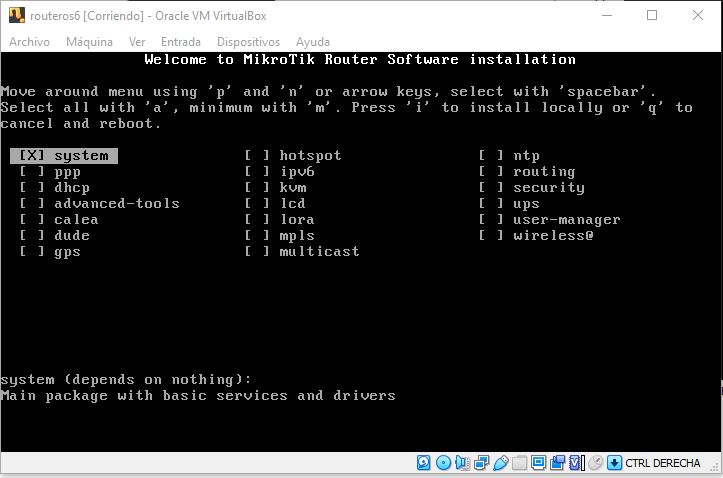

When the package selection screen appears, press A to select all packages

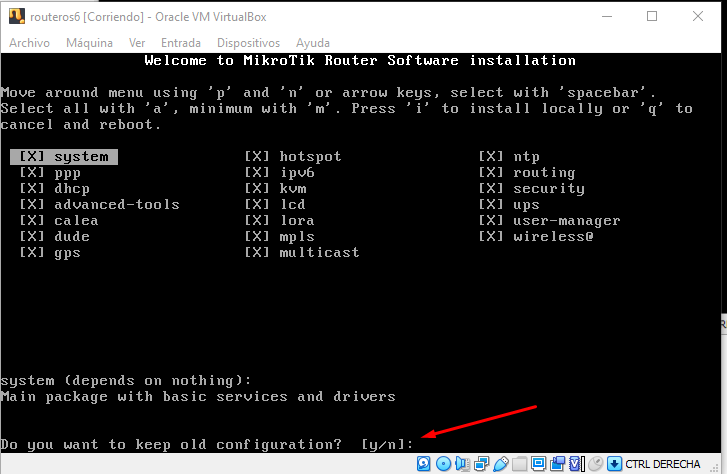

Press I to start the installation and confirm when prompted

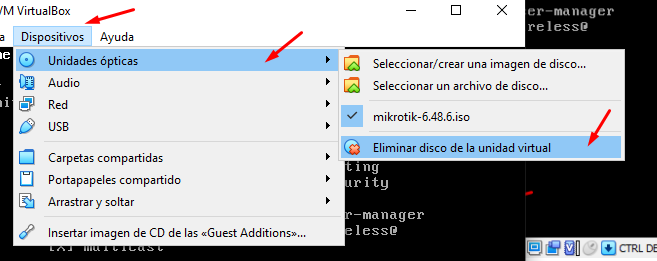

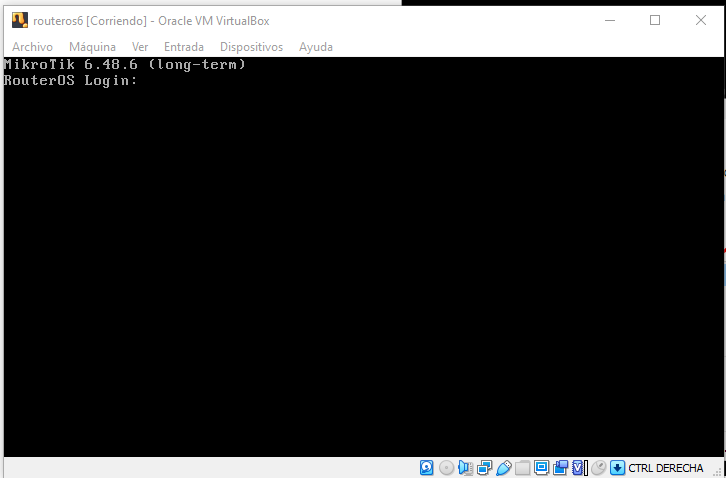

After installation completes, unmount the ISO image to prevent the installation wizard from restarting

Step 4: Initial Configuration

Assign IP Address

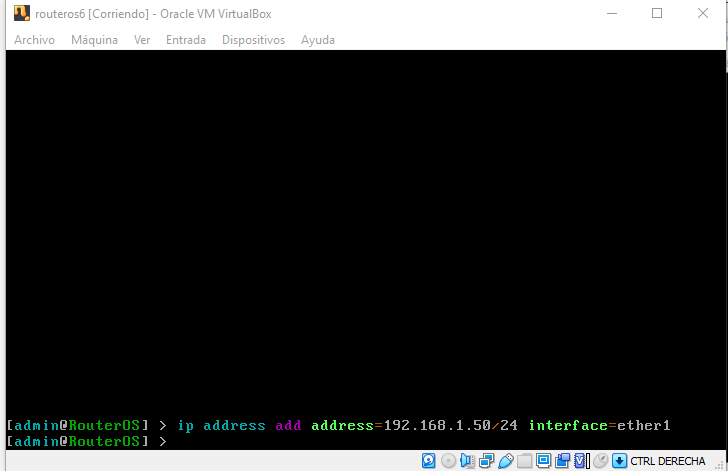

Add an IP address to enable remote access. For this example, we'll use 192.168.1.50:

ip address add address=192.168.1.50/24 interface=ether1

Verify the IP address was added correctly:

ip address print

Access Web Interface

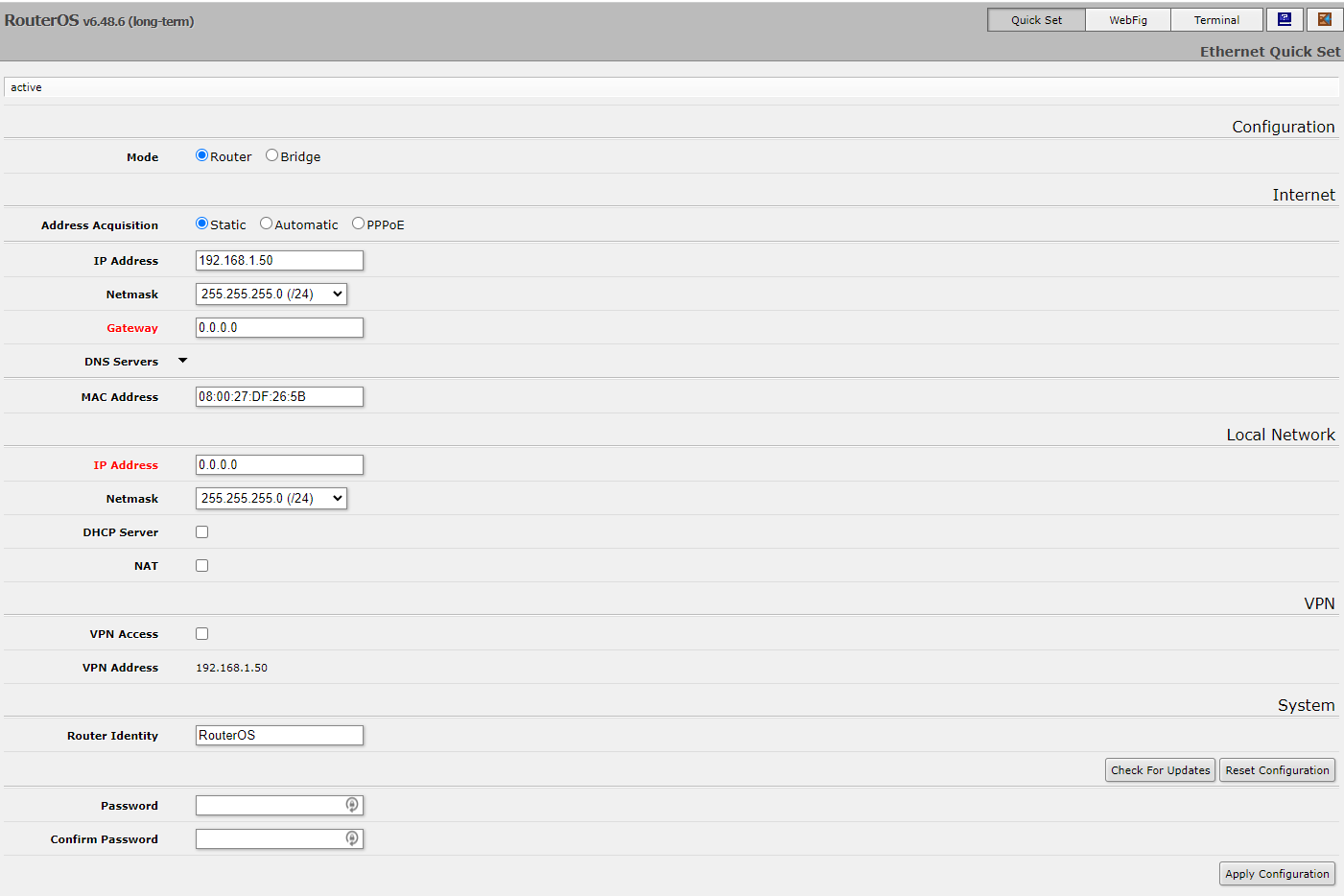

Open a web browser and navigate to the RouterOS web interface using the IP address you configured:

http://192.168.1.50/webfig/

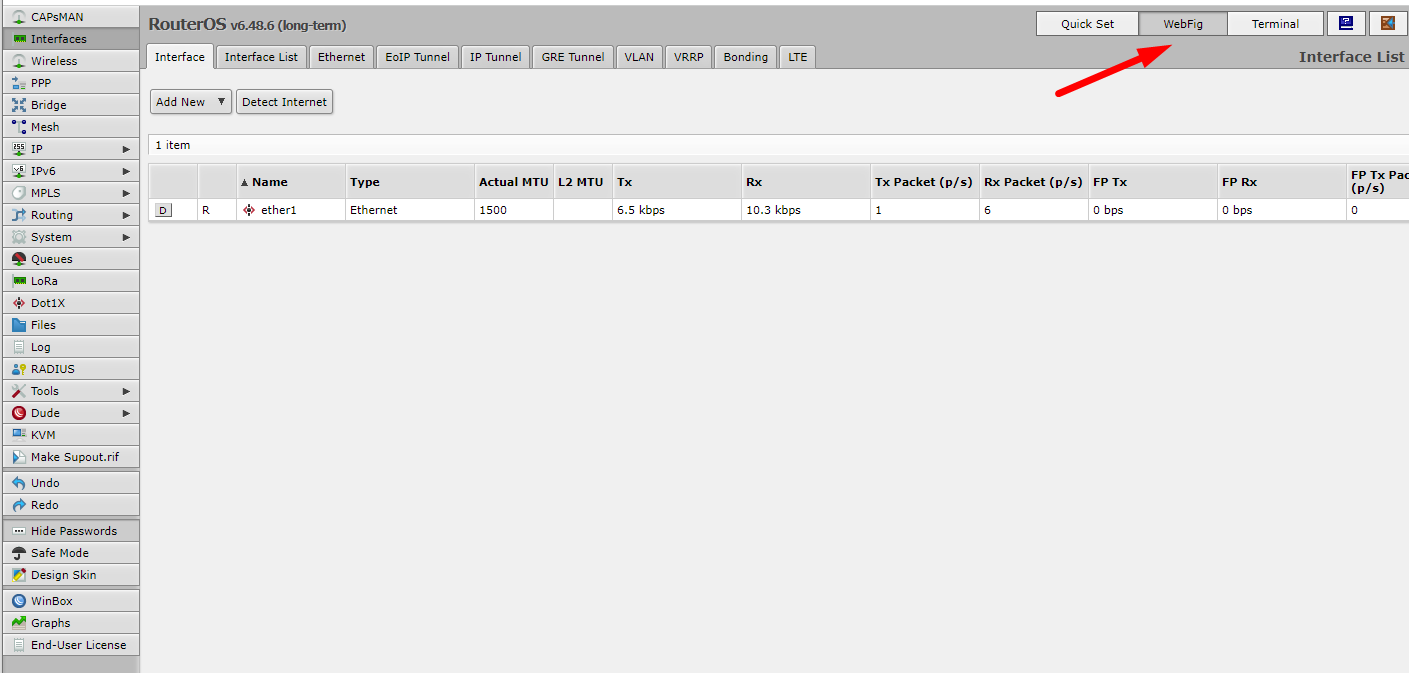

Click on WebFig to access the full configuration interface

Step 5: Install TR-069 Package

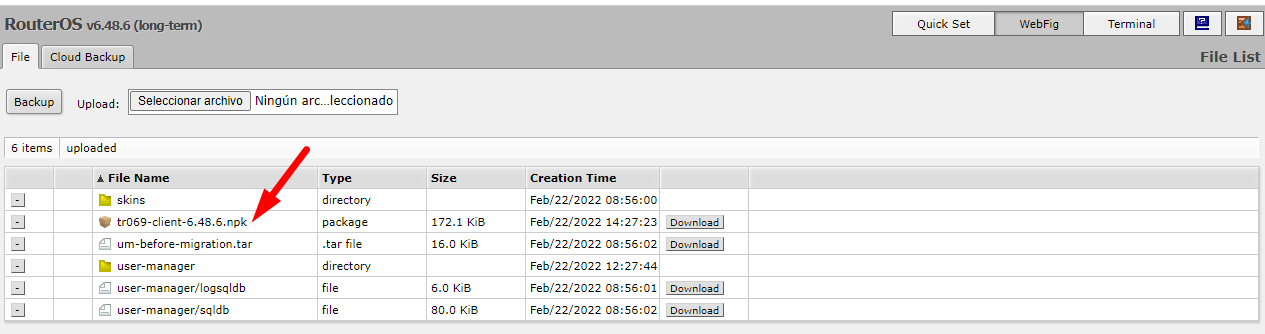

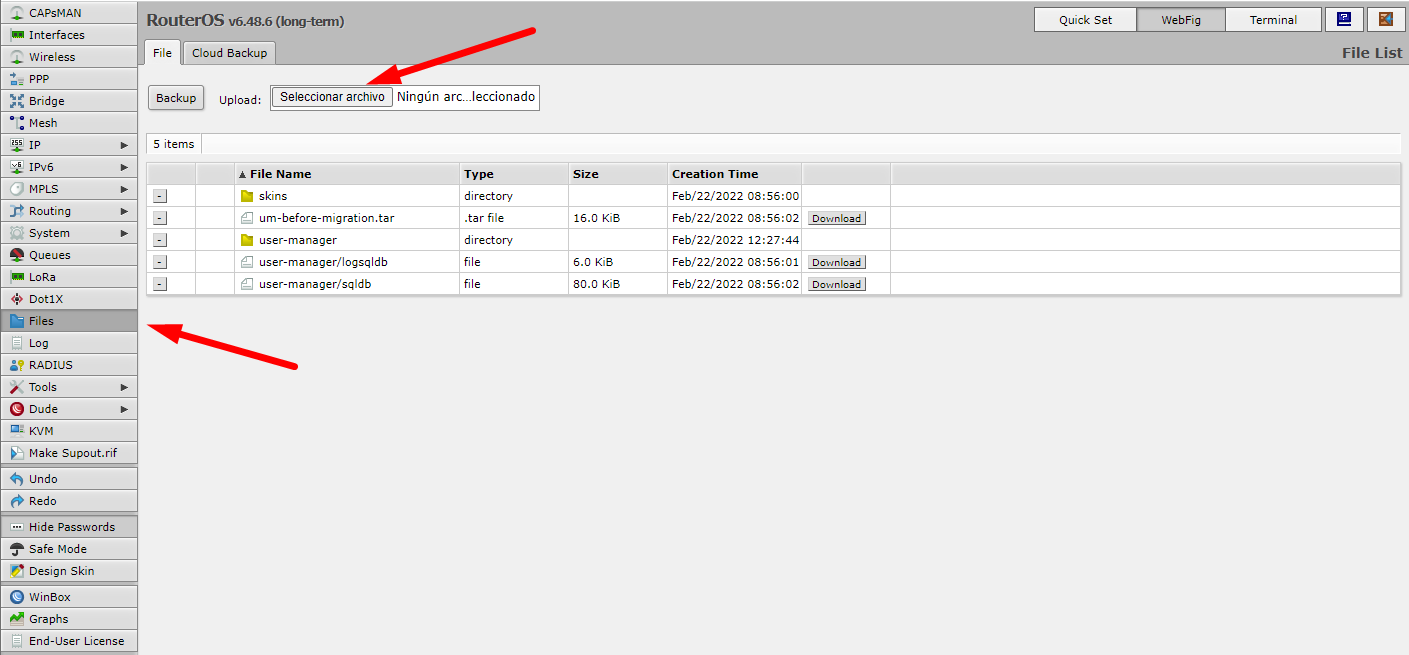

Navigate to Files in the WebFig interface and upload the TR-069 package

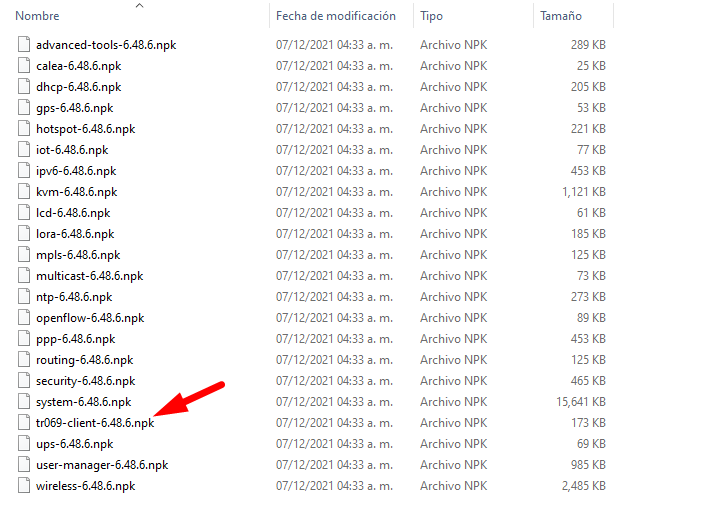

Extract the downloaded Extra packages archive and locate the TR-069 package file

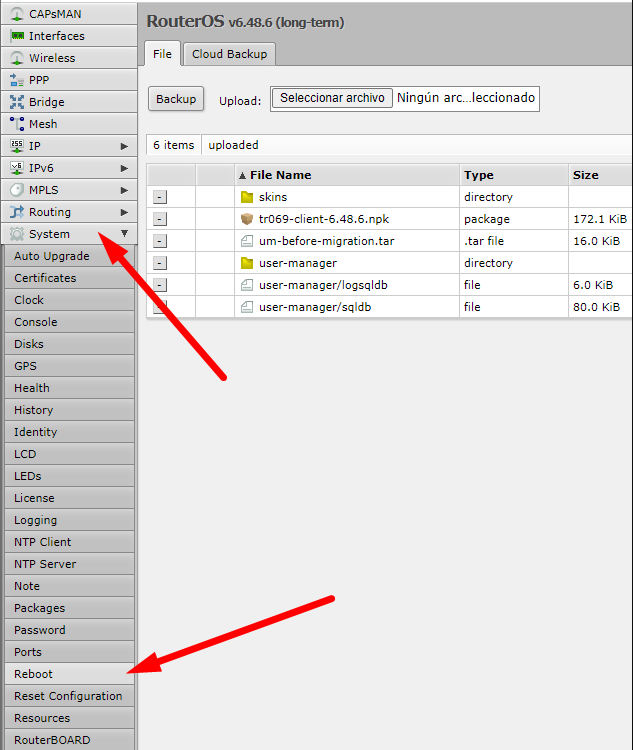

Reboot the router to complete the package installation

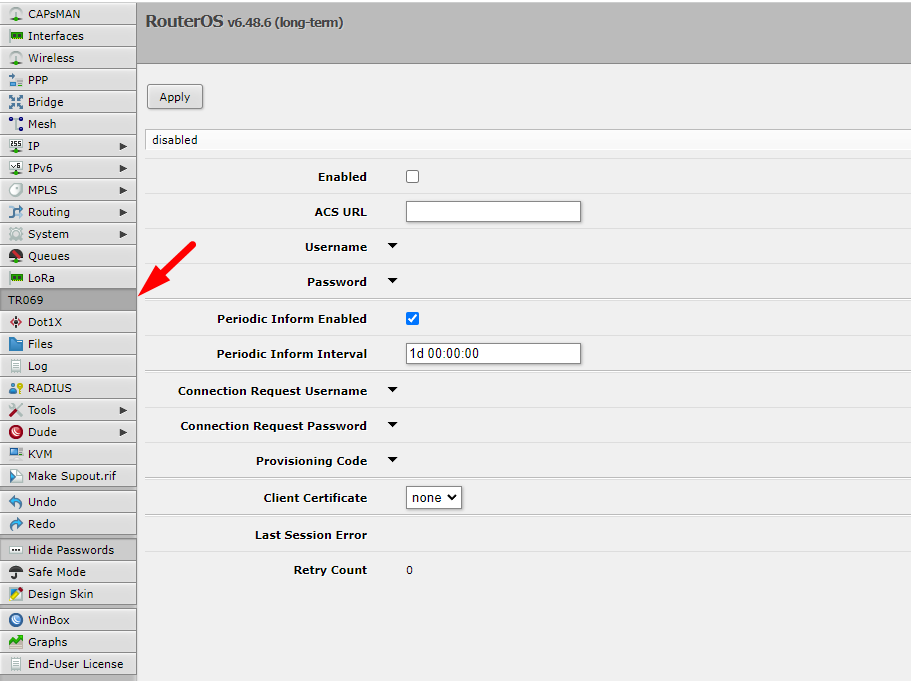

After reboot, verify that TR-069 is enabled in the system

Step 6: Obtain RouterOS License

RouterOS displays a warning message indicating you have 24 hours to use the software without a license. You must register to obtain a free demo license.

Save Software ID

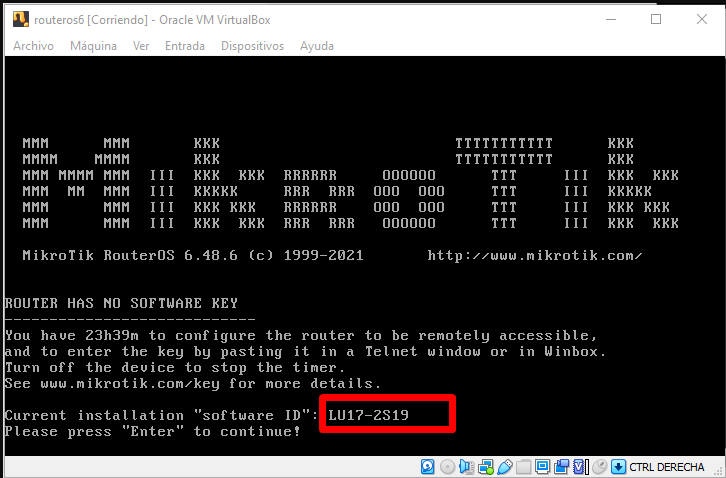

Note the Software ID displayed in the license warning message

Generate License Key

Register for a MikroTik account at the registration page

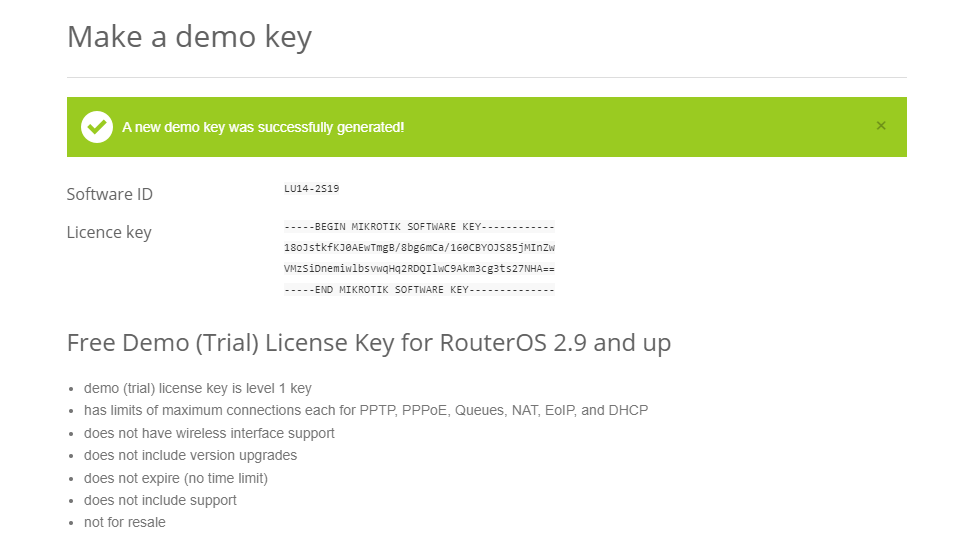

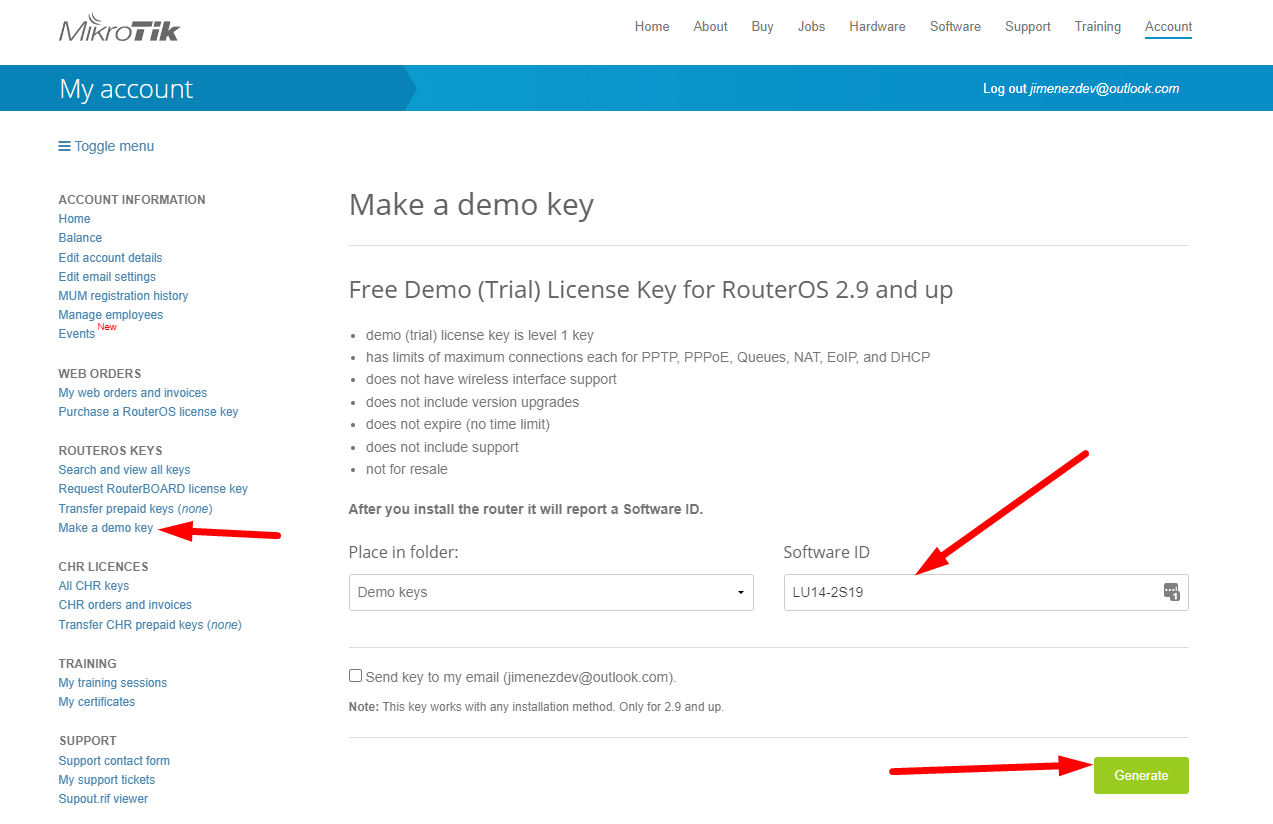

After logging in, navigate to MAKE A DEMO KEY, enter your Software ID, and generate the license
