Overview

The Device Logs section of the Zequenze Control Portal provides a comprehensive view of all device activity and configuration changes. This page displays real-time and historical log entries for network devices, allowing administrators to monitor device events, track configuration modifications, and troubleshoot network issues.

Key Features

  • Real-time Log Monitoring: View live device events and configuration changes as they occur
  • Comprehensive Search: Advanced search functionality to filter logs by various criteria
  • Export Capabilities: Export log data for external analysis and reporting
  • Reports Generation: Generate custom reports from filtered log data
  • Detailed Event Information: Access to complete event details including timestamps, origins, and affected parameters
  • Filtering System: Multiple filter options to narrow down log entries based on specific criteria

UI Elements

Header Section

  • Search Bar: Located at the top center for quick log entry searches
  • Export Button: Blue "Export" button for exporting log data
  • Reports Button: Light blue "Reports" button for generating custom reports
  • Close Filter Button: Green "X" button for closing the filter panel
  • Filter Panel: Expanded right-side panel with advanced filtering options

Main Data Table

The central table displays log entries with the following columns:

  • Created: Timestamp of when the event occurred
  • Origin: Source of the event (e.g., "Automatic")
  • Device: Device identifier or name
  • Action: Type of action performed (e.g., "Event: Boot")
  • Name/Variable Name: Specific parameter or event name affected
  • Value: Current or new value of the parameter
  • Pending: Status indicator for pending changes
  • Sent: Status indicator for transmitted changes
  • Applied: Status indicator for applied changes
  • Status: Overall status indicator with colored indicators (green "Ok" status shown)

Current Data Display

The page currently shows one log entry with actual device data:

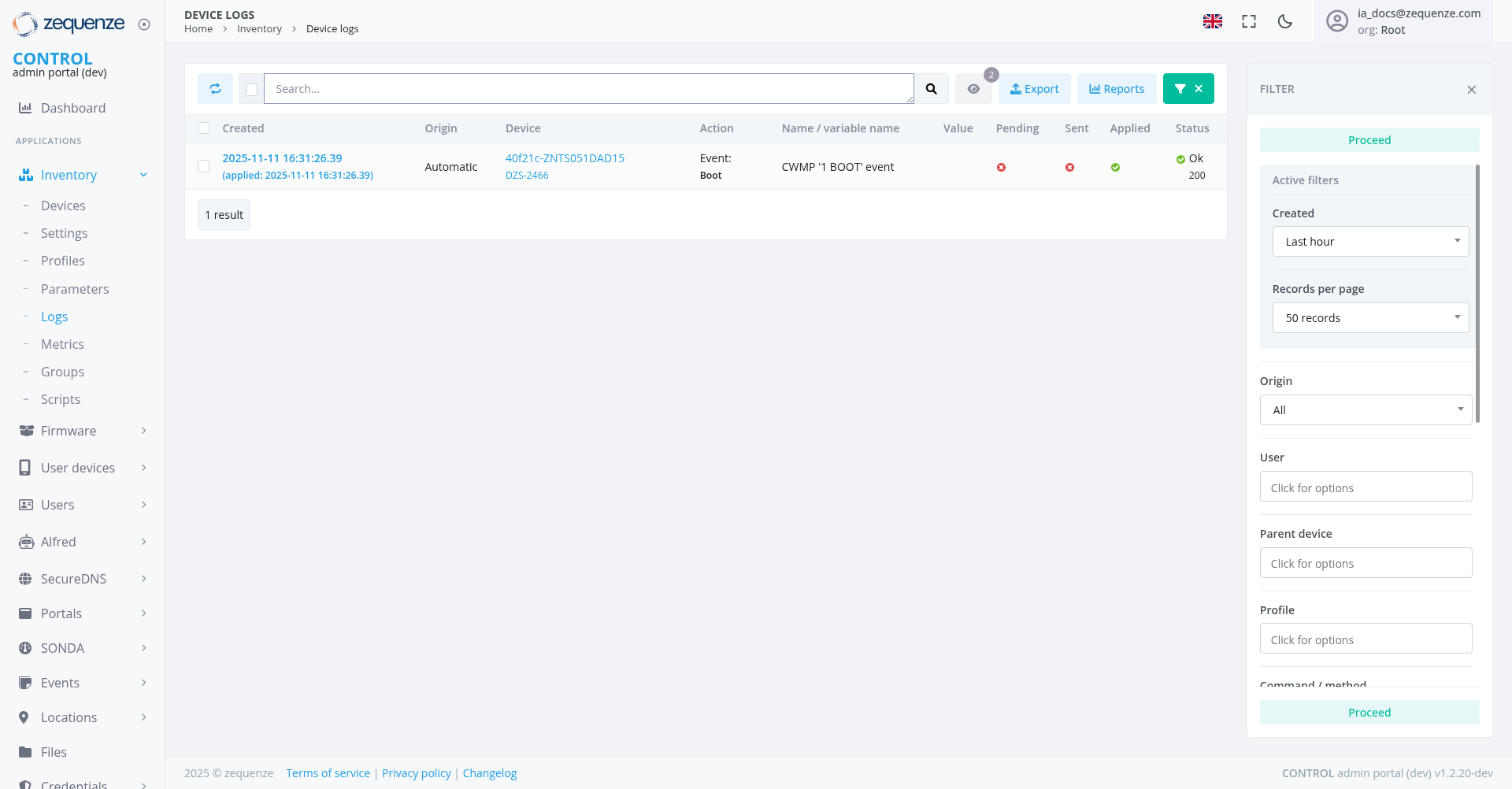

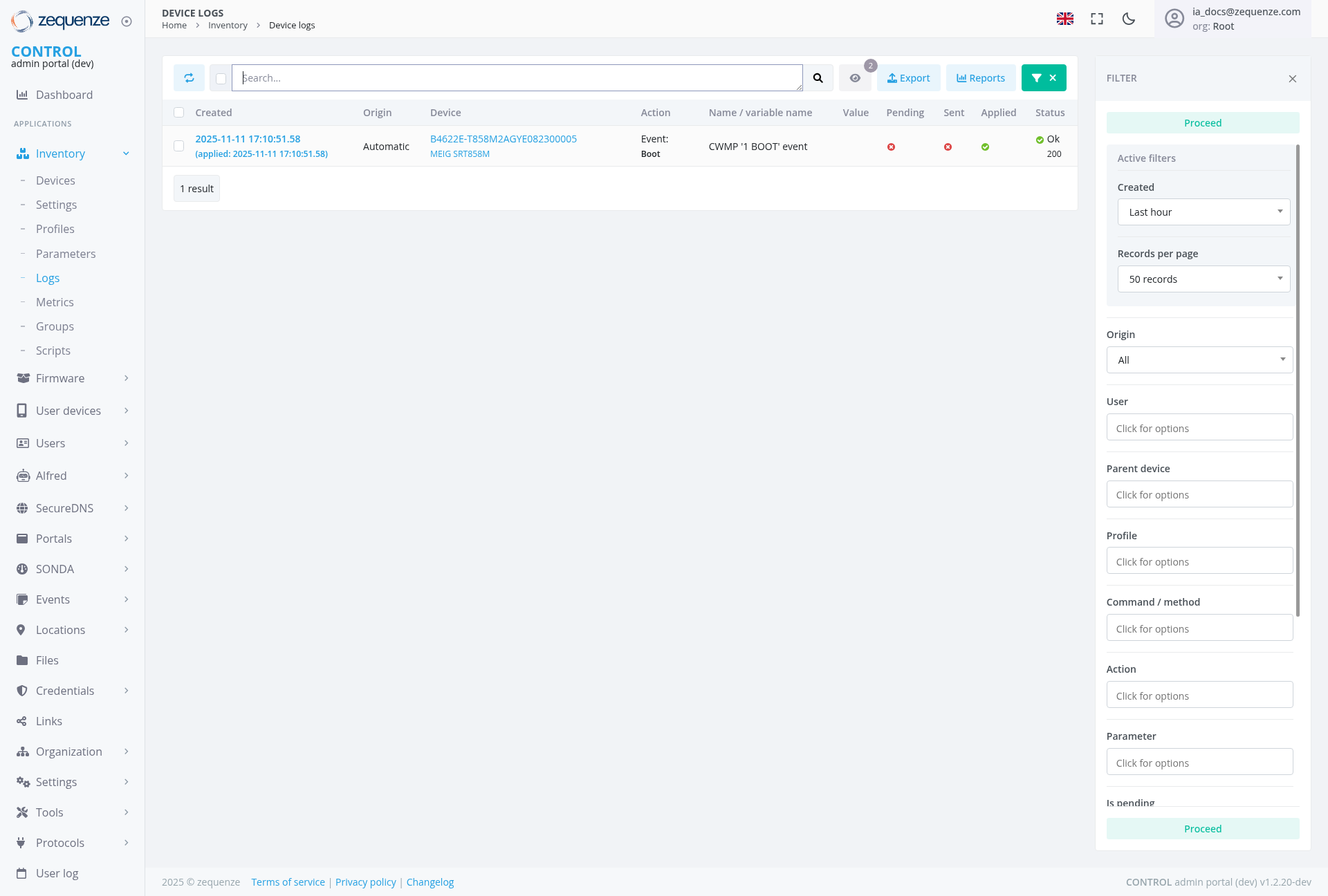

  • Entry: CWMP 'I BOOT' event from device "40F21C-ZNT5051DAD15"B4C22E-T958MA2A0YE062300005" (D25-2466)MFG SR1858M) at timestamp "2025-11-11 16:31:26.39"17:10:31.56" (applied: 2025-11-11 16:31:26.39)17:10:31.56)
  • Status Indicators: Visual status markers with green checkmarksred and redgreen indicatorscircles for different states, with green "Ok"OK" status and "200" values displayed
  • Results Counter: "1 result" shown at the bottom left

Filter Panel (Right Side)

  • Process Status: "Proceed" status indicator at the top in a green badge
  • Active filters: Display of currently applied filters
  • Created: Time-based filtering with "Last hour" dropdown selection
  • Records per page: "50 records" dropdown for pagination controls
  • Origin: "All" dropdown for filtering by event source
  • User: "Click for options" field for user-based filtering
  • Parent device: "Click for options" field for device hierarchy filtering
  • Profile: "Click for options" field for configuration profile filtering
  • Command/method: "Click for options" field for command type filtering
Action: "Click for options" field for action-based filtering Parameter: "Click for options" field for parameter-based filtering Is pending: Filter option with "Proceed" status filterdisplayed showingin activea filteringgreen by command typebadge
