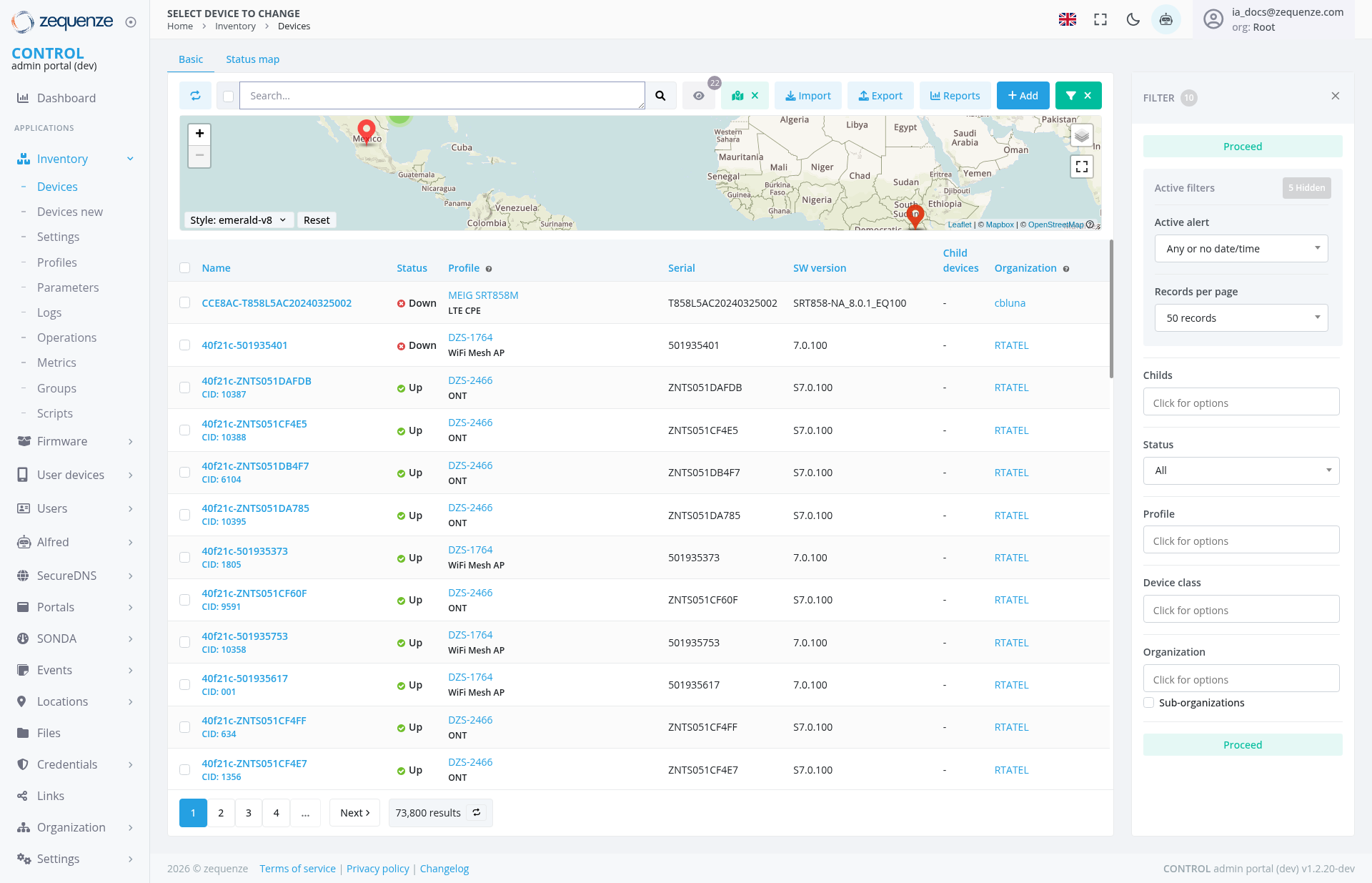

Screenshot - DevicesScreenshot - Devices

Overview

The Device Inventory page in the Zequenze Control Portal provides a comprehensive view of all managed devices across your network infrastructure. This centralized interface displays device status, configuration details, and organizational hierarchy in both tabular and map-based views.

Key Features

  • Dual View Options: Toggle between Basic table view and Status map view for different perspectives on device data
  • Interactive Map: Geographic visualization showing device locations with status indicators
  • Real-time Status Monitoring: Live status updates for all devices with color-coded indicators
  • Advanced Filtering: Multi-criteria filtering system for refined device searches
  • Bulk Operations: Import/export capabilities and bulk device management
  • Hierarchical Organization: View devices organized by sub-organizations and groups

UI Elements

Top Navigation Bar

  • Device Selection Dropdown: "SELECT DEVICE TO CHANGE" allows switching between managed devices
  • Breadcrumb Navigation: Home > Inventory > Devices path for easy navigation
  • User Account: Displays logged-in user (ia_docs@zequenze.com) with Root privileges

Main Content Area

  • View Toggle Tabs: Switch between "Basic" (table view) and "Status map" (geographic view)
  • Search Bar: Global search functionality across all device attributes
  • Action Buttons:
    • Import devices
    • Export data
    • Reports
    • Add new devices
    • Bulk delete (X button)

Interactive Map View

  • Geographic Display: Shows device locations across multiple continents including North America, Africa, and the Middle East
  • Location Markers: Red markers indicating device positions with visible markers in Mexico and Saudi Arabia regions
  • Map Controls:
    • Zoom in/out buttons
    • Style selector (emerald-v8 theme)
    • Reset button for map view
    • Fullscreen toggle

Device Data Table

Displays comprehensive device information in columns:

  • Name: Device identifier with clickable links and CID (Connection ID) numbers
  • Status: Real-time operational status (Up/Down with color indicators)
  • Profile: Device configuration profile type (DZS-2466 ONT, DZS-1764 WiFi Mesh AP, MEIG SRT858M LTE CPE)
  • Serial: Hardware serial numbers
  • SW Version: Current software/firmware version
  • Child Devices: Count of subordinate devices (showing "-" for no child devices)
  • Organization: Organizational assignment (RTATEL, cbluna)

Right Panel Filters

  • ExpandedCollapsed Filter Panel: The filter panel is now expandedcollapsed on the right side of the interface, showing comprehensiveonly filtering options including:
    • Active Filters: Currently set tothe "AnyFILTER" orbutton nowith date/time"a notification badge
    • AlertFilter SettingsToggle: ActiveClick alertthe configuration"FILTER" button to expand the filtering options
    • RecordsNotification Per PageIndicator: CurrentlyThe set to "50 records" with dropdown selection
    Status Selection: Dropdown set to "All" for device status filtering Profile Filtering: "Click for options" dropdown for profile-based filtering Device Class: "Click for options" selection for device type filtering Organization: "Click for options" with sub-organization checkbox option Proceed Button: Actionfilter button atdisplays thea bottomnotification ofbadge theindicating filteractive panelfilters or available options

    User Interactions

    Primary Actions

    1. Device Selection: Click on device names to view detailed configuration
    2. Status Monitoring: Visual status indicators provide immediate operational overview
    3. Search and Filter: Use search bar and filter panel for targeted device discovery
    4. Map Navigation: Interact with geographic map to locate devices spatially, with zoom and fullscreen capabilities
    5. Bulk Operations: Select multiple devices for group actions

    Map Interactions

    • Zoom Controls: Use + and - buttons to adjust map zoom level
    • Style Selection: Change map appearance using the style dropdown
    • Reset View: Return to default map positioning
    • Fullscreen Mode: Toggle fullscreen display for better map visibility

    Filter Interactions

    • ExpandedCollapsed Filter Panel: The filter panel is currently expanded,collapsed, showing allonly availablea filtering"FILTER" optionsbutton with activenotification controlsbadge in the top-right area
    • Filter ConfigurationAccess: Click the "FILTER" button to expand the panel and access filtering options including:
      • Active Filters: Manage time-based filtering criteria (currently set to "Any or no date/time")
      • Alert Settings: Configure alert-based filtering options
      • Records Per Page: Adjust pagination display (dropdown showing "50 records")
      • Status Selection: Choose from device status options using "All" dropdown
      • Profile Filtering: Access profile-based filtering via "Click for options" dropdown
      • Device Class: Select specific device types through "Click for options" interface
      • Organization Scope: Apply organizational filtering with "Click for options" and sub-organization checkboxoptions
    Apply Filters: Use the "Proceed" button at the bottom of the panel to apply selected filter criteria Panel Toggle: The panel can be collapsed usingstate maximizes viewing area for the Xdevice buttontable inand the top-right corner of the filter sectionmap

    Secondary Actions

    • Data Export: Export filtered device lists for external analysis
    • Report Generation: Create custom reports based on current view
    • Device Import: Bulk device addition via import functionality

    Navigation

    Access Path

    • Primary: Admin Portal → Inventory → Devices
    • Direct URL: https://control-dev.zequenze.com/admin/inventory/device/
    • Dashboard: Return to main overview
    • Settings: Device configuration management
    • Profiles: Device profile management
    • Groups: Device grouping and organization

    Data Displayed

    Device Information

    • Operational Status: Real-time up/down status with visual indicators (showing mix of Up and Down devices)
    • Hardware Details: Serial numbers (various series including T858LSAC, ZNT50051, and 501935 series), device models, firmware versions
    • Network Configuration: Profile assignments (DZS-2466 ONT, DZS-1764 WiFi Mesh AP, MEIG SRT858M LTE CPE) and network parameters
    • Organizational Structure: Parent-child relationships and organizational assignments (RTATEL, cbluna organizations)

    Status Indicators

    • 🔴 Red Circle: Device is down or unreachable (visible on CCEBAC-T858LSAC and 40f21c-501935401 devices)
    • 🟢 Green Circle: Device is operational and responsive (majority of devices showing green status)
    • Blue Links: Clickable elements for detailed views

    Actions Available

    Individual Device Actions

    • View Details: Click device name for comprehensive device information
    • Status Monitoring: Real-time operational status tracking
    • Profile Management: View and modify device configuration profiles

    Bulk Operations

    • Multi-device Selection: Select multiple devices for group operations
    • Data Export: Export device lists in various formats
    • Import New Devices: Bulk device addition and configuration
    • Report Generation: Create custom reports based on filtered data

    Administrative Functions

    • Add New Device: Manual device addition and configuration
    • Delete Devices: Remove devices from management (bulk delete available)
    • Advanced Filtering: The expandedcollapsed filter panel on the right provides immediatespace-efficient access to comprehensive filtering options including:options:
      • Filter Access: Click the "FILTER" button with notification badge to expand filtering options
      • Active Filters Management: Configure time-based filtering with "Any or no date/time" option
      • Alert Configuration: Set up alert-based device filtering
      • Status Filtering: Use the "All" dropdown to selectSelect from device status options (All/Up/Down)
      • Profile Filtering: Access device configuration profile filtering via "Click for options"
      • Device Class Filtering: Select specific device types through "Click for options" interface
      • Organization Filtering: Apply organizational scope with "Click for options" and optional sub-organization inclusion
      • Pagination Control: Adjust records per page display (currently set to "50 records")
      • Apply Changes: Use the "Proceed" button to executeExecute selected filter criteria when panel is expanded
      Panel Management: CloseThe thecollapsed expandedstate filter panel using the X button in the top-right corner to maximizemaximizes viewing area while keeping filter access readily available

      Notes/Tips

      • Status Colors: Red indicators require immediate attention; green indicates normal operation
      • Pagination: Navigate through 73,800 total results using pagination controls at the bottom of the table
      • Map View: Switch to Status map tab for geographic device distribution visualization with full interactive capabilities across global locations
      • Filter Panel: The filter panel is currentlycollapsed expandedby showingdefault allto availablemaximize optionsviewing space - useclick the "Proceed"FILTER" button to applyaccess filterscomprehensive orfiltering the X button to close for more viewing spaceoptions
      • Filter ConfigurationAccess: MultipleThe notification badge on the filter button indicates available filtering options areor availableactive simultaneously - configure time filters, status, profiles, device classes, and organizational scope as neededfilters
      • Real-time Updates: Page displays live status information; refresh periodically for latest data
      • Map Navigation: Use fullscreen mode for detailed geographic analysis of device distribution across continents
      • Device Types: The inventory includes ONT devices, WiFi Mesh Access Points, and LTE CPE devices with different software versions across multiple organizations
