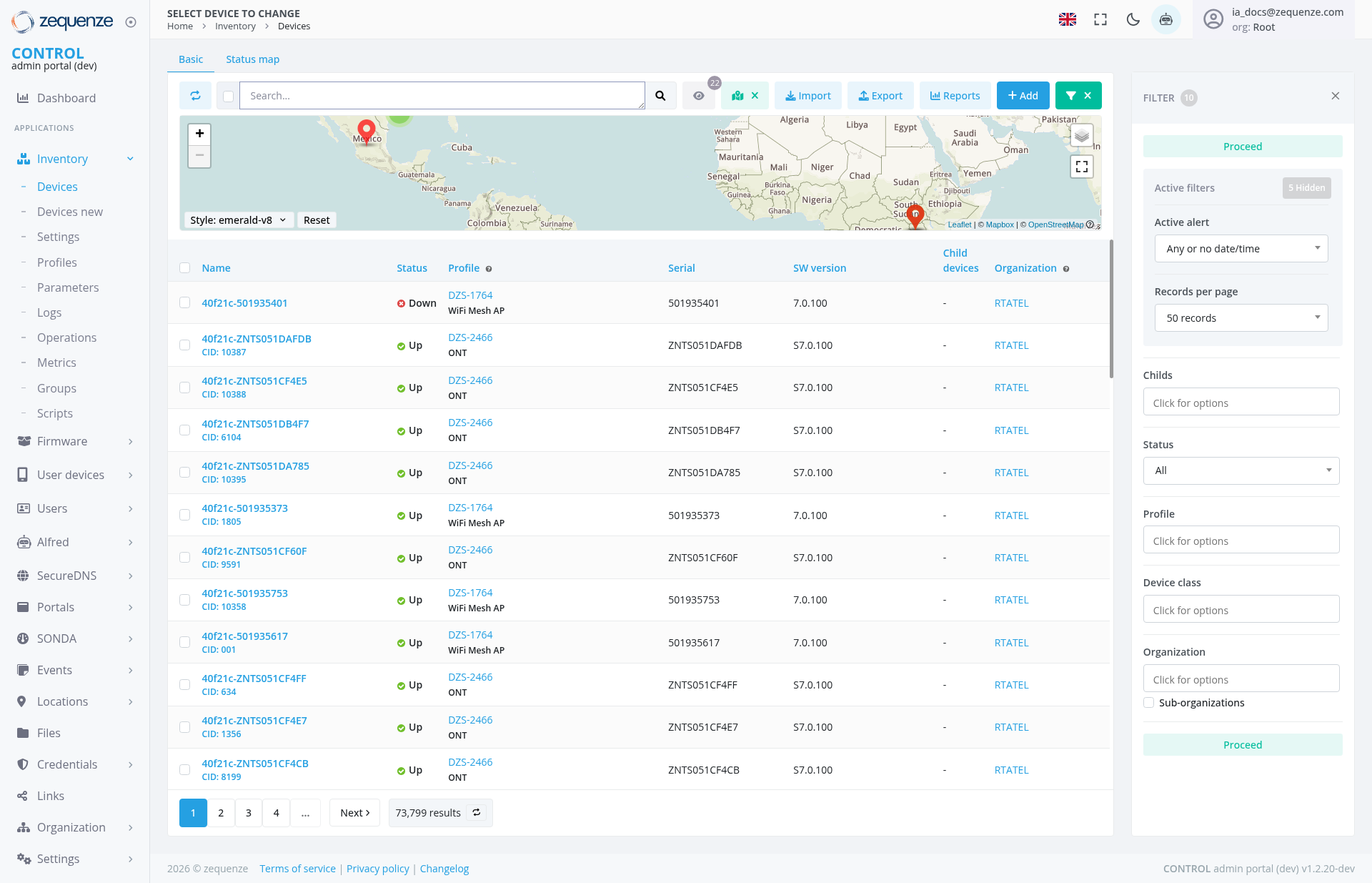

Screenshot - DevicesScreenshot - Devices

Overview

The Device Inventory page in the Zequenze Control Portal provides a comprehensive view of all managed devices across your network infrastructure. This centralized interface displays device status, configuration details, and organizational hierarchy in both tabular and map-based views.

Key Features

  • Dual View Options: Toggle between Basic table view and Status map view for different perspectives on device data
  • Interactive Map: Geographic visualization showing device locations with status indicators
  • Real-time Status Monitoring: Live status updates for all devices with color-coded indicators
  • Advanced Filtering: Multi-criteria filtering system for refined device searches
  • Bulk Operations: Import/export capabilities and bulk device management
  • Hierarchical Organization: View devices organized by sub-organizations and groups

UI Elements

Top Navigation Bar

  • Device Selection Dropdown: "SELECT DEVICE TO CHANGE" allows switching between managed devices
  • Breadcrumb Navigation: Home > Inventory > Devices path for easy navigation
  • User Account: Displays logged-in user (ia_docs@zequenze.com) with Root privileges

Main Content Area

  • View Toggle Tabs: Switch between "Basic" (table view) and "Status map" (geographic view)
  • Search Bar: Global search functionality across all device attributes
  • Action Buttons:
    • Import devices
    • Export data
    • Reports
    • Add new devices
    • Bulk delete (X button)

Interactive Map View

  • Geographic Display: Shows device locations across multiple continents including North America, Africa, and the Middle East
  • Location Markers: Red markers indicating device positions with visible markers in Mexico and Saudi Arabia regions
  • Map Controls:
    • Zoom in/out buttons
    • Style selector (emerald-v8 theme)
    • Reset button for map view
    • Fullscreen toggle

Device Data Table

Displays comprehensive device information in columns:

  • Name: Device identifier with clickable links and CID (Connection ID) numbers
  • Status: Real-time operational status (Up/Down with color indicators)
  • Profile: Device configuration profile type (DZS-2466 ONT, DZS-1764 WiFi Mesh AP)
  • Serial: Hardware serial numbers
  • SW Version: Current software/firmware version
  • Child Devices: Count of subordinate devices (showing "-" for no child devices)
  • Organization: Organizational assignment (RTATEL)

Right Panel Filters

  • CollapsedExpanded Filter Panel: The filter panel is displayed in aan collapsedexpanded state, showing onlycomprehensive thefiltering word "FILTER" with a count indicator and a close button (X)options
  • MinimizedFilter InterfaceCategories: The
    • Status: Dropdown to filter options are hidden in this view, providing more space for the mainby device tablestatus (currently set to "All")
    • Toggle ControlProfile: TheSelection collapsedfor paneldevice canprofile presumablytypes bewith expanded"Click for options" placeholder
    Device Class: Options for device classification with "Click for options" placeholder Organization: Organizational filtering with "Click for options" placeholder and sub-organizations option Additional Controls:
      Records per page selector (set to access"50 records") Active filters display showing "Any or no date/time" for time-based filtering Childs filtering optionsoption "Proceed" button for applying selected filters

      User Interactions

      Primary Actions

      1. Device Selection: Click on device names to view detailed configuration
      2. Status Monitoring: Visual status indicators provide immediate operational overview
      3. Search and Filter: Use search bar and filter panel for targeted device discovery
      4. Map Navigation: Interact with geographic map to locate devices spatially, with zoom and fullscreen capabilities
      5. Bulk Operations: Select multiple devices for group actions

      Map Interactions

      • Zoom Controls: Use + and - buttons to adjust map zoom level
      • Style Selection: Change map appearance using the style dropdown
      • Reset View: Return to default map positioning
      • Fullscreen Mode: Toggle fullscreen display for better map visibility

      Filter Interactions

      • CollapsedExpanded Interface: The filter panel isprovides currentlyaccess minimized,to showingmultiple onlyfiltering a "FILTER" label with indicatorcategories
      • PanelStatus ToggleFilter: ClickSelect todevice expandstatus the(Up/Down/All) filterfrom paneldropdown to access comprehensive filtering optionsmenu
      • SpaceProfile OptimizationSelection: TheChoose collapsedspecific statedevice maximizesprofiles to display
      Device Class Filter: Filter by device classification types Organization Filter: Select specific organizations or sub-organizations Records Control: Adjust the viewingnumber areaof forrecords displayed per page Apply Filters: Use the device"Proceed" tablebutton andto mapapply selected filter combinations

      Secondary Actions

      • Data Export: Export filtered device lists for external analysis
      • Report Generation: Create custom reports based on current view
      • Device Import: Bulk device addition via import functionality

      Navigation

      Access Path

      • Primary: Admin Portal → Inventory → Devices
      • Direct URL: https://control-dev.zequenze.com/admin/inventory/device/
      • Dashboard: Return to main overview
      • Settings: Device configuration management
      • Profiles: Device profile management
      • Groups: Device grouping and organization

      Data Displayed

      Device Information

      • Operational Status: Real-time up/down status with visual indicators (all devices showing "Up" status)
      • Hardware Details: Serial numbers (ZNT50051 series and 501935 series), device models, firmware versions (57.0.100 and 7.0.100)
      • Network Configuration: Profile assignments (DZS-2466 ONT and DZS-1764 WiFi Mesh AP) and network parameters
      • Organizational Structure: Parent-child relationships and organizational assignments (RTATEL organization)

      Status Indicators

      • 🔴 Red Circle: Device is down or unreachable
      • 🟢 Green Circle: Device is operational and responsive (all visible devices showing green status)
      • Blue Links: Clickable elements for detailed views

      Actions Available

      Individual Device Actions

      • View Details: Click device name for comprehensive device information
      • Status Monitoring: Real-time operational status tracking
      • Profile Management: View and modify device configuration profiles

      Bulk Operations

      • Multi-device Selection: Select multiple devices for group operations
      • Data Export: Export device lists in various formats
      • Import New Devices: Bulk device addition and configuration
      • Report Generation: Create custom reports based on filtered data

      Administrative Functions

      • Add New Device: Manual device addition and configuration
      • Delete Devices: Remove devices from management (bulk delete available)
      • Filter Panel Management: Toggle between collapsed and expanded filter panel views for optimal screen space utilization
      Advanced Filtering: Access comprehensive filtering options by expandingthrough the collapsedexpanded filter panel Filter Management:
        Set device status filters (All/Up/Down) Configure profile-based filtering Apply device class filters Select organizational scope including sub-organizations Control pagination with records per page setting Apply filter combinations using the "Proceed" button

        Notes/Tips

        • Status Colors: Red indicators require immediate attention; green indicates normal operation
        • Pagination: Navigate through 73,799 total results using pagination controls at the bottom of the table
        • Map View: Switch to Status map tab for geographic device distribution visualization with full interactive capabilities across global locations
        • FilterAdvanced Panel: The filter panel can be collapsed to maximize viewing space or expanded for detailed filtering options
        Space ManagementFiltering: Use the collapsedexpanded filter viewpanel whento youapply needmultiple maximumfilter screencriteria real estatesimultaneously for theprecise device tablesearches Filter Combinations: Combine status, profile, device class, and maporganization filters for highly targeted device views Records Management: Adjust the records per page setting (currently 50) to optimize performance and viewing preferences Real-time Updates: Page displays live status information; refresh periodically for latest data Map Navigation: Use fullscreen mode for detailed geographic analysis of device distribution across continents Device Types: The inventory includes both ONT (Optical Network Terminal) devices and WiFi Mesh Access Points with different software versions
