Devices

Overview

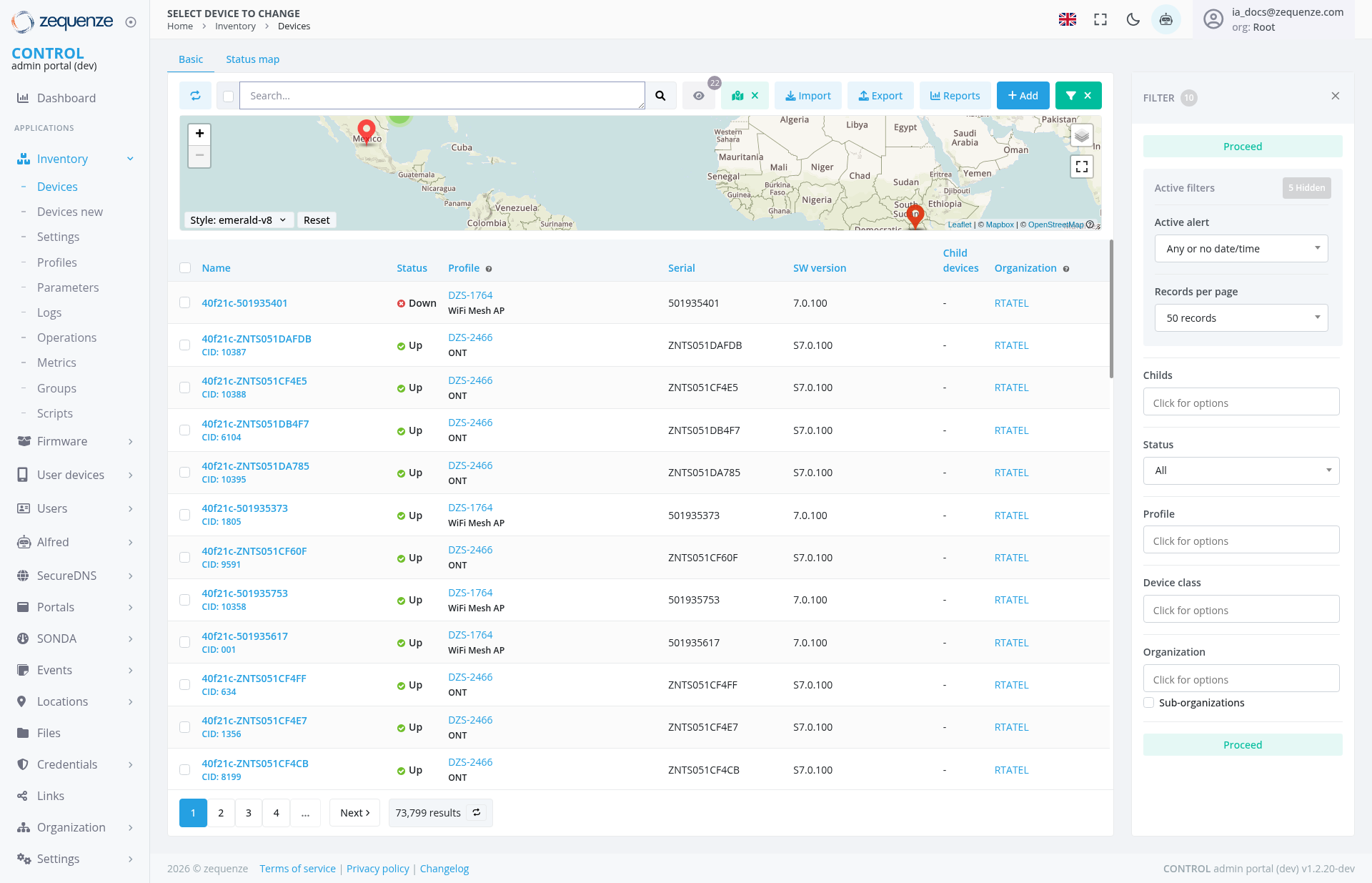

The Device Inventory page in the Zequenze Control Portal provides a comprehensive view of all managed devices across your network infrastructure. This centralized interface displays device status, configuration details, and organizational hierarchy in both tabular and map-based views.

Key Features

• Dual View Options: Toggle between Basic table view and Status map view for different perspectives on device data
• Interactive Map: Geographic visualization showing device locations with status indicators
• Real-time Status Monitoring: Live status updates for all devices with color-coded indicators
• Advanced Filtering: Multi-criteria filtering system for refined device searches
• Bulk Operations: Import/export capabilities and bulk device management
• Hierarchical Organization: View devices organized by sub-organizations and groups

UI Elements

Top Navigation Bar

• Device Selection Dropdown: "SELECT DEVICE TO CHANGE" allows switching between managed devices
• Breadcrumb Navigation: Home > Inventory > Devices path for easy navigation
• User Account: Displays logged-in user (ia_docs@zequenze.com) with Root privileges

Main Content Area

• View Toggle Tabs: Switch between "Basic" (table view) and "Status map" (geographic view)
• Search Bar: Global search functionality across all device attributes
• Action Buttons:
  • Import devices
  • Export data
  • Generate reports
  • Add new devices
  • Bulk delete (X button)

Interactive Map View

• Geographic Display: Shows device locations across multiple continents including North America, Africa, and the Middle East
• Location Markers: Red markers indicating device positions with visible markers in Mexico and Saudi Arabia regions
• Map Controls:
  • Zoom in/out buttons
  • Style selector (emerald-v8 theme)
  • Reset button for map view
  • Fullscreen toggle

Device Data Table

Displays comprehensive device information in columns:

• Name: Device identifier with clickable links and CID (Connection ID) numbers
• Status: Real-time operational status (Up/Down with color indicators)
• Profile: Device configuration profile type (DZS-2466 ONT, DZS-1764 WiFi Mesh AP)
• Serial: Hardware serial numbers
• SW Version: Current software/firmware version
• Child Devices: Count of subordinate devices (showing "-" for no child devices)
• Organization: Organizational assignment (RTATEL)

Right Panel Filters

• ExpandedCollapsed Filter Panel: The filter panel is displayed in ana expandedcollapsed state on the right side, showing multipleonly filteringthe options"FILTER" label with a count indicator and controlsclose button
• ComprehensiveCompact Filtering OptionsInterface:
  The
• panel Activeshows filtersa section:minimized Shows "3 Hidden" indicating filtered results

Active alert dropdown: Currently set to "Any or no date/time" Records per page: Dropdown for controlling table pagination (set to "50 records") Childs section: "Click for options" dropdown for filtering by child device criteria Status dropdown: Filter by device statusview with "All"0" count indicator, suggesting no active filters are currently selected Profile section: "Click for options" for filtering by device profiles Device class: "Click for options" for device classification filtering Organization: "Click for options" for organizational filtering with "Sub-organizations" checkbox option applied Filter State Indicator: Shows active filtering with "Proceed" button for applying changes Collapsible InterfaceToggle: The panel can be collapsedexpanded usingby clicking on the closefilter buttonarea (X)to inaccess the top-rightfull cornerrange of filtering options Clean Layout: With the filter panel collapsed, more screen space is dedicated to the main device table and map view

User Interactions

Primary Actions

1. Device Selection: Click on device names to view detailed configuration
2. Status Monitoring: Visual status indicators provide immediate operational overview
3. Search and Filter: Use search bar and expandedcollapsed filter panel for targeted device discovery
4. Map Navigation: Interact with geographic map to locate devices spatially, with zoom and fullscreen capabilities
5. Bulk Operations: Select multiple devices for group actions

Map Interactions

• Zoom Controls: Use + and - buttons to adjust map zoom level
• Style Selection: Change map appearance using the style dropdown
• Reset View: Return to default map positioning
• Fullscreen Mode: Toggle fullscreen display for better map visibility

Filter Interactions

• ExpandedCollapsed Interface: The filter panel shows alla availablecompact filteringview optionswith injust anthe open"FILTER" statelabel and count indicator
• Multi-criteriaPanel FilteringExpansion: AccessClick on the filter area to various filter categories including active alerts, status, profile, device class,expand and organizationaccess comprehensive filtering options
• DynamicSpace FilteringOptimization: UseThe dropdowncollapsed menusstate andmaximizes checkboxesthe tomain refinecontent deviceviewing searchesarea
• Filter Application: Use the "Proceed" button to apply selected filter criteria

Records Management: Adjust the number of records displayed per page using the records dropdown Hidden ResultsStatus: The "3 Hidden"0" indicator shows that someno resultsfilters are currently filtered outactive PanelQuick ToggleAccess: Close theThe filter panel usingremains theeasily Xaccessible buttonwhile tomaintaining maximizea theclean main content areainterface

Secondary Actions

• Data Export: Export filtered device lists for external analysis
• Report Generation: Create custom reports based on current view
• Device Import: Bulk device addition via import functionality

Navigation

Access Path

• Primary: Admin Portal → Inventory → Devices
• Direct URL: https://control-dev.zequenze.com/admin/inventory/device/

Related Sections

• Dashboard: Return to main overview
• Settings: Device configuration management
• Profiles: Device profile management
• Groups: Device grouping and organization

Data Displayed

Device Information

• Operational Status: Real-time up/down status with visual indicators (all devices showing "Up" status)
• Hardware Details: Serial numbers (ZNT50051 series and 501935 series), device models, firmware versions (57.0.100 and 7.0.100)
• Network Configuration: Profile assignments (DZS-2466 ONT and DZS-1764 WiFi Mesh AP) and network parameters
• Organizational Structure: Parent-child relationships and organizational assignments (RTATEL organization)

Status Indicators

• 🔴 Red Circle: Device is down or unreachable
• 🟢 Green Circle: Device is operational and responsive (all visible devices showing green status)
• Blue Links: Clickable elements for detailed views

Actions Available

Individual Device Actions

• View Details: Click device name for comprehensive device information
• Status Monitoring: Real-time operational status tracking
• Profile Management: View and modify device configuration profiles

Bulk Operations

• Multi-device Selection: Select multiple devices for group operations
• Data Export: Export device lists in various formats
• Import New Devices: Bulk device addition and configuration
• Report Generation: Create custom reports based on filtered data

Administrative Functions

• Add New Device: Manual device addition and configuration
• Delete Devices: Remove devices from management (bulk delete available)
• AdvancedCollapsible Filtering: Access comprehensive filtering options throughby expanding the expandedcollapsed filter panel
• Filter Management: The expandedcollapsed filter panel provides fulla clean interface while maintaining quick access to all filtering controls with immediate visibility of optionscapabilities
• FilterSpace-Efficient ApplicationDesign: ApplyThe complexcollapsed state allows for maximum utilization of the main content area while keeping filter combinationsfunctionality usingreadily multiple criteria and the "Proceed" buttonavailable

Notes/Tips

• Status Colors: Red indicators require immediate attention; green indicates normal operation
• Pagination: Navigate through 73,799 total results using pagination controls at the bottom of the table
• Map View: Switch to Status map tab for geographic device distribution visualization with full interactive capabilities across global locations
• AdvancedOptimized FilteringLayout: The expandedcollapsed filter panel provides comprehensivea cleaner interface while maintaining easy access to filtering options including active alerts, device status, profiles, device classes, and organizational hierarchyfunctionality
• Filter StateAccess: Click on the filter panel area to expand and access comprehensive filtering options when needed
