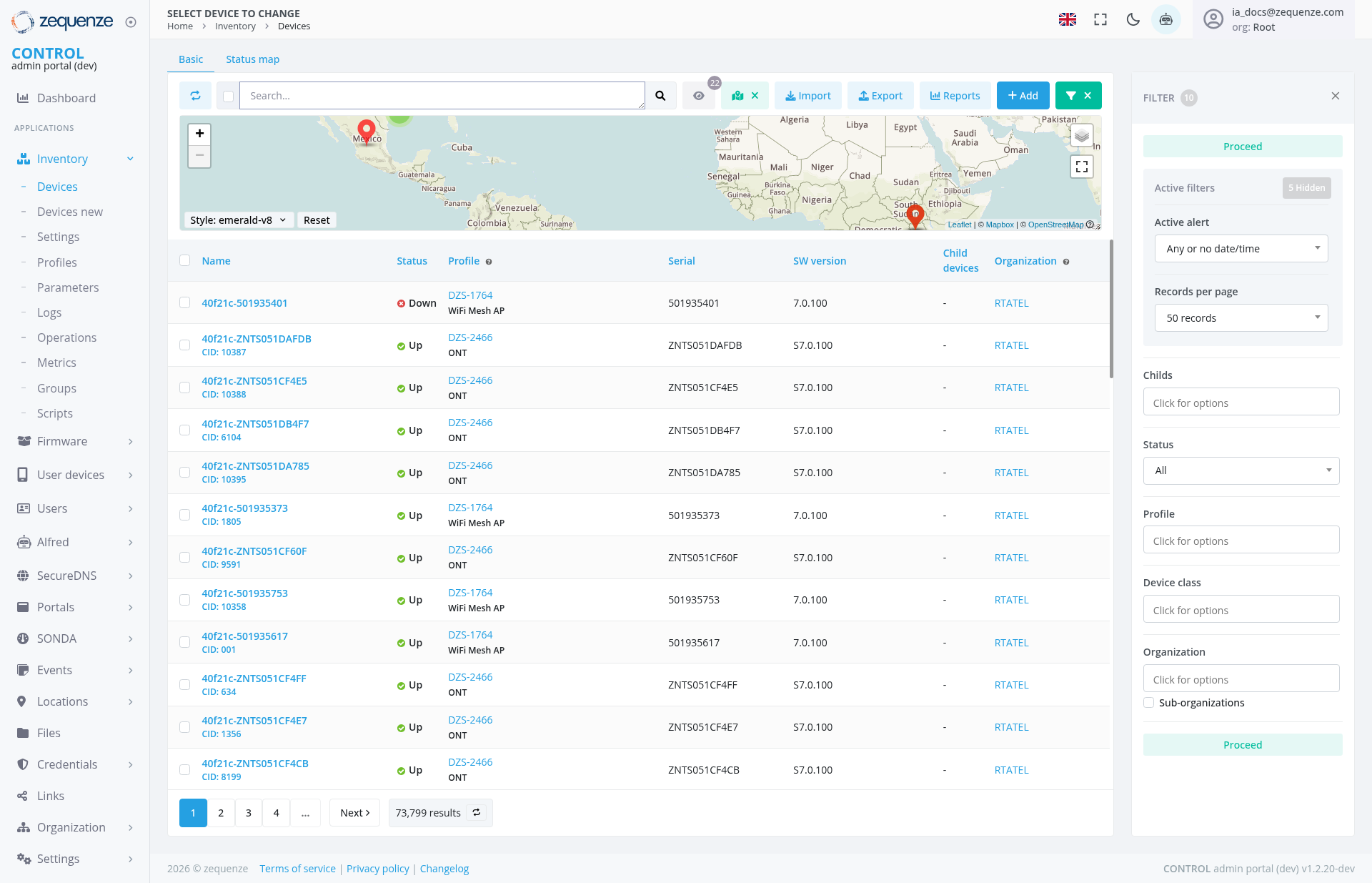

Screenshot - DevicesScreenshot - Devices

Overview

The Device Inventory page in the Zequenze Control Portal provides a comprehensive view of all managed devices across your network infrastructure. This centralized interface displays device status, configuration details, and organizational hierarchy in both tabular and map-based views.

Key Features

  • Dual View Options: Toggle between Basic table view and Status map view for different perspectives on device data
  • Interactive Map: Geographic visualization showing device locations with status indicators
  • Real-time Status Monitoring: Live status updates for all devices with color-coded indicators
  • Advanced Filtering: Multi-criteria filtering system for refined device searches
  • Bulk Operations: Import/export capabilities and bulk device management
  • Hierarchical Organization: View devices organized by sub-organizations and groups

UI Elements

Top Navigation Bar

  • Device Selection Dropdown: "SELECT DEVICE TO CHANGE" allows switching between managed devices
  • Breadcrumb Navigation: Home > Inventory > Devices path for easy navigation
  • User Account: Displays logged-in user (ia_docs@zequenze.com) with Root privileges

Main Content Area

  • View Toggle Tabs: Switch between "Basic" (table view) and "Status map" (geographic view)
  • Search Bar: Global search functionality across all device attributes
  • Action Buttons:
    • Import devices
    • Export data
    • Generate reports
    • Add new devices
    • Bulk delete (X button)

Interactive Map View

  • Geographic Display: Shows device locations across multiple continents including North America, Africa, and the Middle East
  • Location Markers: Red markers indicating device positions with visible markers in Mexico and Saudi Arabia regions
  • Map Controls:
    • Zoom in/out buttons
    • Style selector (emerald-v8 theme)
    • Reset button for map view
    • Fullscreen toggle

Device Data Table

Displays comprehensive device information in columns:

  • Name: Device identifier with clickable links and CID (Connection ID) numbers
  • Status: Real-time operational status (Up/Down with color indicators)
  • Profile: Device configuration profile type (DZS-2466 ONT, DZS-1764 WiFi Mesh AP)
  • Serial: Hardware serial numbers
  • SW Version: Current software/firmware version
  • Child Devices: Count of subordinate devices (showing "-" for no child devices)
  • Organization: Organizational assignment (RTATEL)

Right Panel Filters

  • ExpandedCollapsed Filter Panel: The filter panel is displayed in ana expandedcollapsed state on the right side, showing comprehensivea filteringminimal "FILTER" button with a notification indicator (0)
Compact View: The filter interface is condensed, showing only essential controls without expanded options FilterToggle SectionsFunctionality: Multiple collapsibleThe filter categoriespanel arecan visiblebe including:expanded
    by clicking Active filters section showing current filter status Active alert section for alert-based filtering with "Any or no date/time" option Records per page dropdown set to "50 records" Childs section with "Click for options" placeholder Status dropdown set to "All" Profile section with "Click for options" placeholder Device class section with "Click for options" placeholder Organization section with "Click for options" placeholder and "Sub-organizations" checkbox Proceed Button: Green "Proceed" button at the bottom ofon the filter panelinterface for applying selected filtersarea

    User Interactions

    Primary Actions

    1. Device Selection: Click on device names to view detailed configuration
    2. Status Monitoring: Visual status indicators provide immediate operational overview
    3. Search and Filter: Use search bar and expandedcollapsed filter panel for targeted device discovery
    4. Map Navigation: Interact with geographic map to locate devices spatially, with zoom and fullscreen capabilities
    5. Bulk Operations: Select multiple devices for group actions

    Map Interactions

    • Zoom Controls: Use + and - buttons to adjust map zoom level
    • Style Selection: Change map appearance using the style dropdown
    • Reset View: Return to default map positioning
    • Fullscreen Mode: Toggle fullscreen display for better map visibility

    Filter Interactions

    • ExpandedCollapsed Interface: The filter panel is fullyin expanded,a providingminimized state, requiring expansion to access to allfull filtering options
    • Category-basedFilter FilteringToggle: MultipleClick on the filter sectionsarea areto availableexpand forthe refinedfull searchfiltering criteriainterface
    • DropdownQuick SelectionsAccess: VariousThe dropdowncollapsed menusstate forprovides status,immediate recordsvisual perfeedback page,with and otherthe filter options
    counter Option Selection:showing "Click0" foractive options" prompts in various sections for additional filter criteria Sub-organization Toggle: Checkbox option to include or exclude sub-organizations in filtering Apply Filters: Use the green "Proceed" button to execute selected filter criteriafilters

    Secondary Actions

    • Data Export: Export filtered device lists for external analysis
    • Report Generation: Create custom reports based on current view
    • Device Import: Bulk device addition via import functionality

    Navigation

    Access Path

    • Primary: Admin Portal → Inventory → Devices
    • Direct URL: https://control-dev.zequenze.com/admin/inventory/device/
    • Dashboard: Return to main overview
    • Settings: Device configuration management
    • Profiles: Device profile management
    • Groups: Device grouping and organization

    Data Displayed

    Device Information

    • Operational Status: Real-time up/down status with visual indicators (all devices showing "Up" status)
    • Hardware Details: Serial numbers (ZNT50051 series and 501935 series), device models, firmware versions (57.0.100 and 7.0.100)
    • Network Configuration: Profile assignments (DZS-2466 ONT and DZS-1764 WiFi Mesh AP) and network parameters
    • Organizational Structure: Parent-child relationships and organizational assignments (RTATEL organization)

    Status Indicators

    • 🔴 Red Circle: Device is down or unreachable
    • 🟢 Green Circle: Device is operational and responsive (all visible devices showing green status)
    • Blue Links: Clickable elements for detailed views

    Actions Available

    Individual Device Actions

    • View Details: Click device name for comprehensive device information
    • Status Monitoring: Real-time operational status tracking
    • Profile Management: View and modify device configuration profiles

    Bulk Operations

    • Multi-device Selection: Select multiple devices for group operations
    • Data Export: Export device lists in various formats
    • Import New Devices: Bulk device addition and configuration
    • Report Generation: Create custom reports based on filtered data

    Administrative Functions

    • Add New Device: Manual device addition and configuration
    • Delete Devices: Remove devices from management (bulk delete available)
    • Advanced Filtering: Access comprehensive filtering options throughby expanding the expandedcollapsed filter panel with multiple categories and criteria
    • Filter ApplicationManagement: UseThe thecollapsed "Proceed"filter buttonpanel shows a clean interface with quick access to applyfiltering selected filter combinations across multiple categoriescontrols

    Notes/Tips

    • Status Colors: Red indicators require immediate attention; green indicates normal operation
    • Pagination: Navigate through 73,798799 total results using pagination controls at the bottom of the table
    • Map View: Switch to Status map tab for geographic device distribution visualization with full interactive capabilities across global locations
    • AdvancedCompact Filtering: The expandedcollapsed filter panel provides granulara controlcleaner overinterface devicewhile searchesmaintaining withfull multiplefiltering filterfunctionality categorieswhen including active alerts, status, profile, device class, and organizationexpanded
    • Filter CombinationsState: Combine multipleThe filter criteriacounter across(0) differentindicates categoriesthe fornumber highlyof specificactive devicefilters queriescurrently applied
    • Records Management: Adjust the number of displayed records perand pageaccess usingfiltering theoptions dropdownby inexpanding the filter panel
    • Real-time Updates: Page displays live status information; refresh periodically for latest data
    • Map Navigation: Use fullscreen mode for detailed geographic analysis of device distribution across continents
    • Device Types: The inventory includes both ONT (Optical Network Terminal) devices and WiFi Mesh Access Points with different software versions
    • Sub-organizationSpace FilteringOptimization: UseThe collapsed filter panel maximizes the sub-organizationsmain checkboxcontent toarea includewhile orkeeping excludeadvanced devicesfiltering fromeasily child organizations in search resultsaccessible
