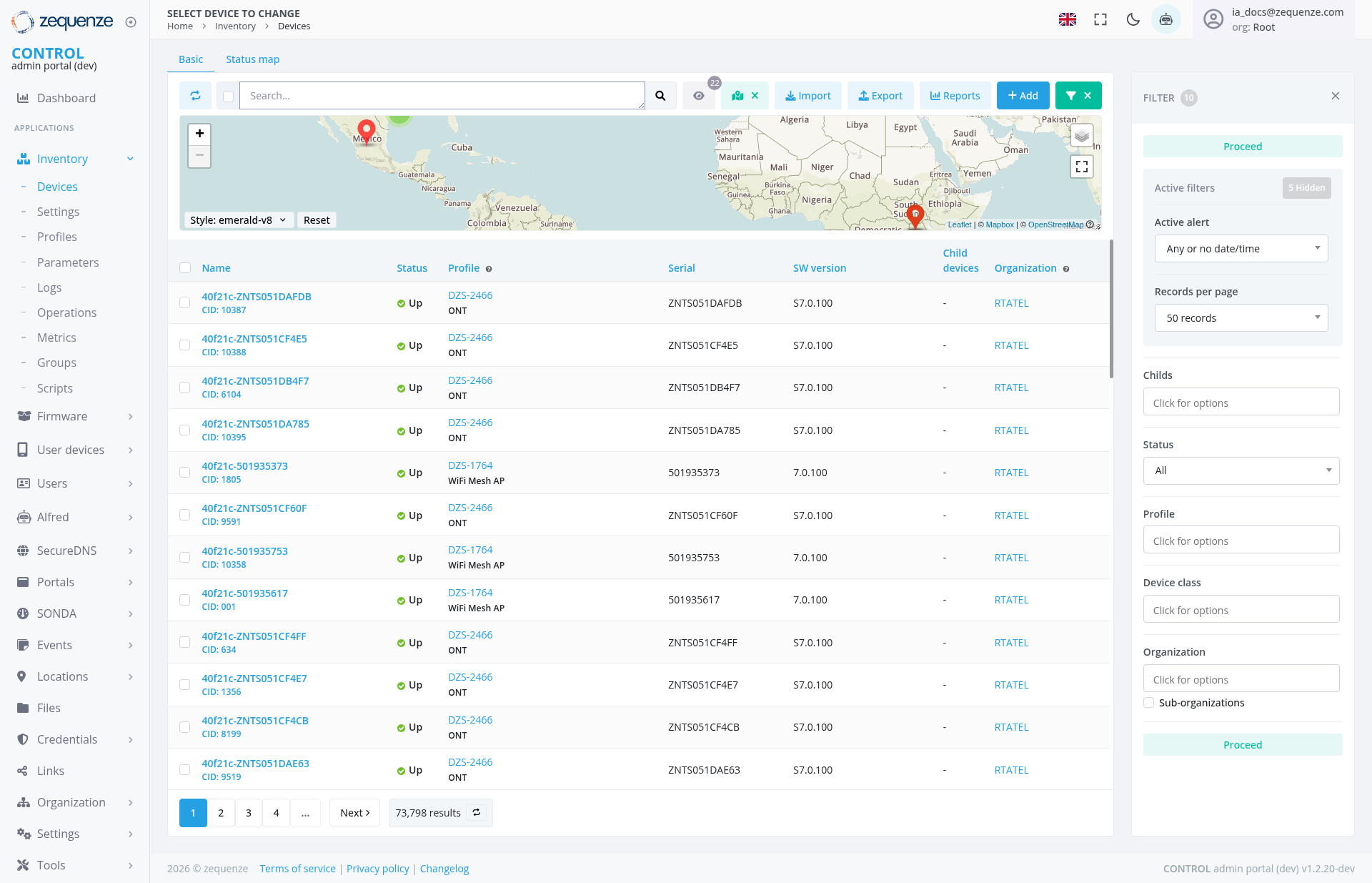

Screenshot - DevicesScreenshot - Devices

Overview

The Device Inventory page in the Zequenze Control Portal provides a comprehensive view of all managed devices across your network infrastructure. This centralized interface displays device status, configuration details, and organizational hierarchy in both tabular and map-based views.

Key Features

  • Dual View Options: Toggle between Basic table view and Status map view for different perspectives on device data
  • Interactive Map: Geographic visualization showing device locations with status indicators
  • Real-time Status Monitoring: Live status updates for all devices with color-coded indicators
  • Advanced Filtering: Multi-criteria filtering system for refined device searches
  • Bulk Operations: Import/export capabilities and bulk device management
  • Hierarchical Organization: View devices organized by sub-organizations and groups

UI Elements

Top Navigation Bar

  • Device Selection Dropdown: "SELECT DEVICE TO CHANGE" allows switching between managed devices
  • Breadcrumb Navigation: Home > Inventory > Devices path for easy navigation
  • User Account: Displays logged-in user (la_docs@zequenze.ia_docs@zequenze.com) with Root privileges

Main Content Area

  • View Toggle Tabs: Switch between "Basic" (table view) and "Status map" (geographic view)
  • Search Bar: Global search functionality across all device attributes
  • Action Buttons:
    • Import devices
    • Export data
    • Generate reports
    • Add new devices
    • Bulk delete (X button)

Interactive Map View

  • Geographic Display: Shows device locations across multiple continents including North America, Africa, and the Middle East
  • Location Markers: Red markers indicating device positions with visible markers in Mexico and Saudi Arabia regions
  • Map Controls:
    • Zoom in/out buttons
    • Style selector (emerald-v8 theme)
    • Reset button for map view
    • Fullscreen toggle

Device Data Table

Displays comprehensive device information in columns:

  • Name: Device identifier with clickable links and CID (Connection ID) numbers
  • Status: Real-time operational status (Up/Down with color indicators)
  • Profile: Device configuration profile type (DZS-2466 ONT, DZS-1764 WiFi Mesh AP)
  • Serial: Hardware serial numbers
  • SW Version: Current software/firmware version
  • Child Devices: Count of subordinate devices (showing "-" for no child devices)
  • Organization: Organizational assignment (RTATEL)

Right Panel Filters

  • FILTER: CollapsibleExpandable filter panel (currently collapsed/closed)expanded/open showing filter options)
  • Records per Page: Pagination control (50 records default)
  • Filter Categories: Available filter options include:
    • Proceed: Filter action button visible at the top and bottom of the filter panel
  • Active filters: Shows currently applied filters
Active alert: Date/time-based alert filtering (set to "Any or no date/time") Records per page: Pagination control set to "50 records" Childs: Child device filtering with dropdown for options Status: Device operational status filter set to "All" Profile: Device profile type filter with dropdown for options Device class: Hardware classification filter with dropdown for options Organization: Organizational filter with sub-organizations"Sub-organizations" checkbox option

User Interactions

Primary Actions

  1. Device Selection: Click on device names to view detailed configuration
  2. Status Monitoring: Visual status indicators provide immediate operational overview
  3. Search and Filter: Use search bar and filter panel for targeted device discovery
  4. Map Navigation: Interact with geographic map to locate devices spatially, with zoom and fullscreen capabilities
  5. Bulk Operations: Select multiple devices for group actions

Map Interactions

  • Zoom Controls: Use + and - buttons to adjust map zoom level
  • Style Selection: Change map appearance using the style dropdown
  • Reset View: Return to default map positioning
  • Fullscreen Mode: Toggle fullscreen display for better map visibility

Filter Interactions

  • Panel Toggle: Expand or collapse the filter panel using the filter control (currently expanded)
Proceed Button: Apply selected filters using the "Proceed" button at the top or bottom of the filter panel Category Selection: Access various filter categories including active alerts, device status, profiles, and organizational structure Dropdown Selections: Use dropdown menus for Childs, Status, Profile, and Device class filters Sub-organization Control: FilterEnable bysub-organization organizationalfiltering hierarchyusing the checkbox when using organization filters

Secondary Actions

  • Data Export: Export filtered device lists for external analysis
  • Report Generation: Create custom reports based on current view
  • Device Import: Bulk device addition via import functionality

Navigation

Access Path

  • Primary: Admin Portal → Inventory → Devices
  • Direct URL: https://control-dev.zequenze.com/admin/inventory/device/
  • Dashboard: Return to main overview
  • Settings: Device configuration management
  • Profiles: Device profile management
  • Groups: Device grouping and organization

Data Displayed

Device Information

  • Operational Status: Real-time up/down status with visual indicators (all devices showing "Up" status)
  • Hardware Details: Serial numbers (ZNT50051 series and 501935 series), device models, firmware versions (57.0.100 and 7.0.100)
  • Network Configuration: Profile assignments (DZS-2466 ONT and DZS-1764 WiFi Mesh AP) and network parameters
  • Organizational Structure: Parent-child relationships and organizational assignments (RTATEL organization)

Status Indicators

  • 🔴 Red Circle: Device is down or unreachable
  • 🟢 Green Circle: Device is operational and responsive (all visible devices showing green status)
  • Blue Links: Clickable elements for detailed views

Actions Available

Individual Device Actions

  • View Details: Click device name for comprehensive device information
  • Status Monitoring: Real-time operational status tracking
  • Profile Management: View and modify device configuration profiles

Bulk Operations

  • Multi-device Selection: Select multiple devices for group operations
  • Data Export: Export device lists in various formats
  • Import New Devices: Bulk device addition and configuration
  • Report Generation: Create custom reports based on filtered data

Administrative Functions

  • Add New Device: Manual device addition and configuration
  • Delete Devices: Remove devices from management (bulk delete available)
  • Filter and Search: Advanced filtering for device discovery and management with the "Proceed" button to apply filters

Notes/Tips

  • Status Colors: Red indicators require immediate attention; green indicates normal operation
  • Pagination: Use "Records per page" control to adjust table display for better performance with 73,798 total results
  • Map View: Switch to Status map tab for geographic device distribution visualization with full interactive capabilities across global locations
  • Filter Management: The filter panel canis be collapsed orcurrently expanded showing all available filter options with dropdown menus and a "Proceed" button to provideapply more screen space for the device table whenselected filters are not needed
  • Organization Hierarchy: Use organization filters and enable the "Sub-organizations" checkbox to navigate complex organizational structures
  • Real-time Updates: Page displays live status information; refresh periodically for latest data
  • Map Navigation: Use fullscreen mode for detailed geographic analysis of device distribution across continents
  • Device Types: The inventory includes both ONT (Optical Network Terminal) devices and WiFi Mesh Access Points with different software versions
  • Filter Application: Remember to click "Proceed" after making filter selections to apply them to the device list
